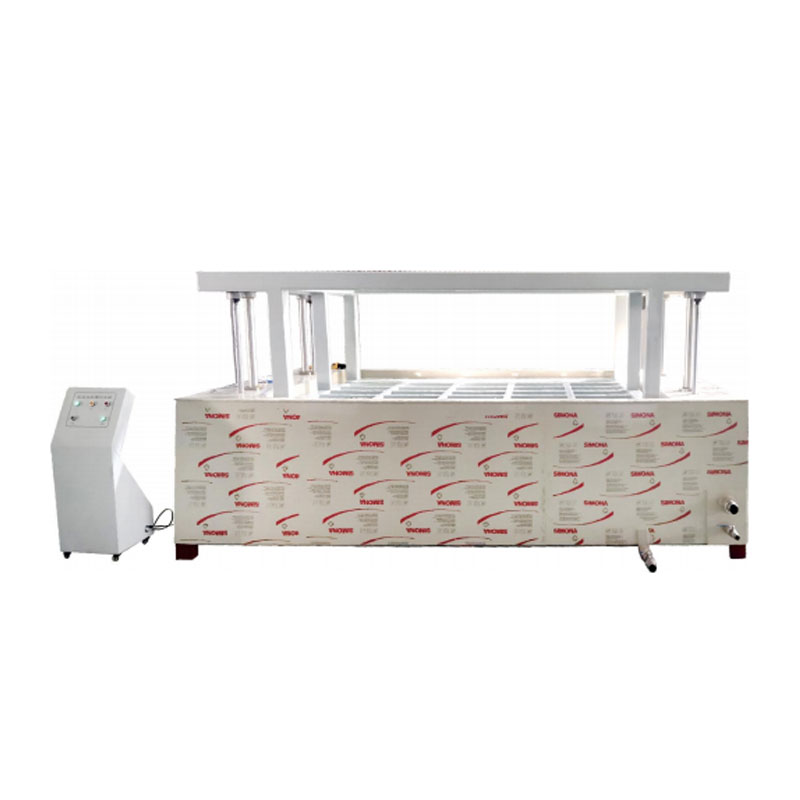

The Battery Pack Seawater Immersion Test Machine is designed to evaluate the sealing performance, corrosion resistance, and electrical safety of battery packs and modules when immersed in seawater or simulated saltwater environments. It simulates real-world scenarios such as flooding, wading, or marine exposure that electric vehicles (EVs) may encounter, helping to verify that the battery system maintains insulation integrity, prevents electrolyte leakage, and avoids short circuits or thermal runaway after immersion.
Test Procedure
- Test Object: Battery pack or system.
- At room temperature, the DUT (Device Under Test) is connected to the vehicle wiring harness in its actual on-vehicle assembly state. Then it is placed in a 3.5% NaCl solution (by mass fraction, simulating seawater composition) for 2 hours. The water depth must be sufficient to fully submerge the DUT. Observe for 2 hours.
- Requirement: The battery pack or system shall not exhibit fire, explosion, or similar hazards.
Specifications
| Product Name | Battery Pack Seawater Immersion Test Machine |
| Control Method | Remote computer control + video monitoring; or PLC touch-screen control (customizable) |
| Water Tank Size | W3000 * D2000 * H1200 mm |
| Battery Pack Lifting Method (Optional) | 1. Cantilever crane 2. Gantry crane 3. Lifting platform 4. Load capacity customizable: 1t / 2t / 3t … |
| Battery Pack Connection Method | Lifting rings installed on battery pack mounting holes + adjustable straps with hooks |
| Water Tank Material | PP board, insulated and corrosion-resistant |
| Water Filling Control | Automatic filling with solenoid valve + water level switch |
| Automatic Drainage | Drain pump for accelerated automatic water discharge |
| Salt Dissolving & Mixing | The water pump automatically circulates from top to bottom to dissolve coarse salt |
| Water Level Scale | A water level gauge is attached inside the tank to visually check the water height |
| Online Salinity Monitoring | Automatic real-time monitoring of brine concentration for accurate saltwater mixing |
| Remote Video Monitoring (Optional) | HD camera installed in the lab for remote monitoring; ≥5 MP, 1080P resolution |
