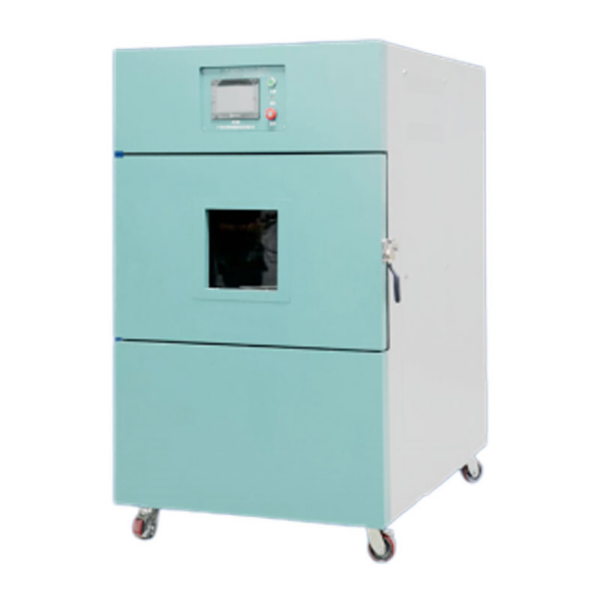

The Battery Wash & Dry Test System is designed for automated battery washing and drying operations. The Battery Wash & Dry Test System integrates a test chamber, a wash tank, and a drying compartment, all in one structure. An internal rotating agitator and lift-controlled wash tank ensure thorough cleaning and efficient transfer to the drying zone. This Battery Wash & Dry Test System replaces manual step-by-step washing procedures—significantly reducing testing time, improving accuracy, and increasing efficiency.
System Structure & Key Components
- Control System
PLC-based touch-screen operation enables intuitive control and reliable workflow management. - Agitation & Lift Drive System
A servo-driven agitator and screw lift mechanism seamlessly combine rotation and lift functions. Batteries are automatically transferred from the heated wash solution into the drying chamber after agitation. - Wash Tank
A standalone SUS316 acid- and alkali-resistant stainless steel tank with internal titanium alloy anti-rust heating elements. The stove-like structure provides uniform wash heating and precise lift control. - Drying System
An independent SUS304 stainless steel hot-air drying chamber with ceramic heating elements and a forced hot-air circulation system driven by a motorized fan ensures rapid drying. - Solution Recovery Tank
A rear-mounted SUS316 stainless steel recovery tank handles acid/alkaline solution mixing and post-test reclaiming of wash fluid. - Drainage Function
A manual ball valve at the rear base allows convenient drainage of recovered water to an external outlet. - Auxiliary Features
Includes an explosion-proof observation window, interior lighting, safety door interlocks, emergency stop protection, and mobility with adjustable leveling and locking casters.
Specifications
| Product Name | Battery Wash & Dry Test System |
| Turntable Outer Diameter | 500 ± 10 mm |
| Inner Wash Tank Diameter | Φ650 mm (SUS316 stainless steel) |
| Inner Wash Tank Depth | 550 mm |
| Battery Center Height Above Liquid | 300 ± 10 mm (adjustable for different batteries) |
| Turntable Speed Range | 1 – 900 RPM (adjustable) |
| Speed Accuracy | ±0.5% RPM |
| Servo Motor Power | 3.0 kW |
| Wash Heating Power | 6.0 kW |
| Lift Motor Power | 120 W |
| Water Pump Power | 100 W |
| Wash Solution Temperature Range | RT +10°C to 80°C (adjustable) |
| Wash Temperature Accuracy | ±2°C |
| Wash Temp Display Resolution | 0.1°C |
| Wash Heating Time | RT +10°C to 45°C < 40 min |
| Drying Temperature Range | RT +10°C to 80°C (adjustable) |
| Drying Temperature Accuracy | ±2°C |
| Drying Temp Display Resolution | 0.1°C |
| Drying Heating Time | RT to 45°C < 10 min |
| Interior Lighting | High-brightness LED for clear visibility |
| Safety Protection | Over-temperature, leakage protection, safety interlock door, emergency stop, three-color alarm |
| Explosion-Proof Safety Chains | Two chains on doors to prevent rapid ejection during failure |
| Power Input | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 19 kW |
| External Dimensions | W1100 × D1550 × H1750 mm |
| Net Weight | 1000 kg |
| Water Supply | Requires city water, G1/2 interface |
| Drainage | Drain channel, G1/2 interface |
