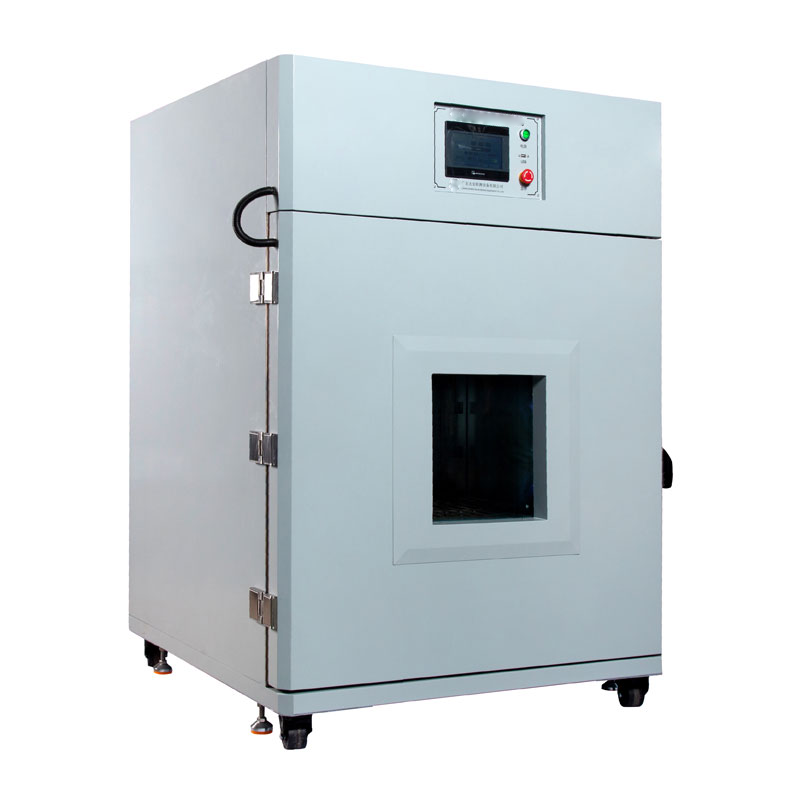

This High-Altitude Low-Pressure Battery Test Chamber is designed to simulate high-altitude, low-pressure environments for battery samples. It evaluates whether batteries meet applicable safety and performance standards under reduced atmospheric pressure conditions commonly encountered at high elevations.
Main Components & Structure
- Control System: PLC with touchscreen human–machine interface.
- Vacuum System: A vacuum pump connected to the cylindrical chamber via control components creates and maintains the target low-pressure environment.
- Auxiliary Features: Explosion-proof observation window; internal lighting; door safety interlocks; emergency stop protection; mobility with leveling and locking feet.
Specifications
| Product Name | High-Altitude Low-Pressure Battery Test Chamber for Battery |
| Control Method | PLC with touchscreen HMI |
| Test Chamber Size | 3C consumer cells & small cells: W600 × D600 × H600 mm; large cells/modules: W1000 × D1000 × H1000 mm |
| Test Pressure Range | 7 – 101 kPa (adjustable) |
| Pressure Control Accuracy | ±0.1 kPa |
| Ambient Temperature | Room temperature |
| Control Parameters | Time and pressure set via touchscreen; fully adjustable to meet all test requirements |
| Shelving | Two stainless steel shelves (SUS304), each with ≥ 50 kg load capacity |
| Inner Chamber Material | Stainless steel SUS304 (3.0 mm thickness, customizable) |
| Sealing Gasket | Corrosion-resistant silicone |
| Vacuum Pump | Dual-stage vacuum pump |
| Automatic Pressure Relief | Automatic controlled relief |
| Manual Relief Valve | Independent high-pressure sealed hand-operated relief valve for emergency pressure release |
| Pressure Display | Real-time chamber pressure readout on touchscreen |
| Exhaust Port | Rear exhaust outlet with φ19 mm diameter for vacuum pump fumes |
| Lighting | High-brightness LED lighting inside chamber |
| Optional Test Terminals | 300A–400A custom connectors |
| Optional Voltage/Temperature Interface | Custom number of channels available |
| Safety Protection | Overload protection, leakage protection, safety interlock doors, emergency stop, three-color alarm indicators |
| Explosion-Proof Chains | Two safety chains on the chamber door to prevent accidental detachment |
| Power Input | AC220V/50Hz, or AC110V/60Hz |
| Product Dimensions | 216L: W850 × D800 × H1650 mm; 1 m³: W1220 × D1250 × H1750 mm |
| Net Weight | ~400 kg (216L); ~1000 kg (1 m³) |
| Compressed Air Requirement | ≥0.6 MPa |
