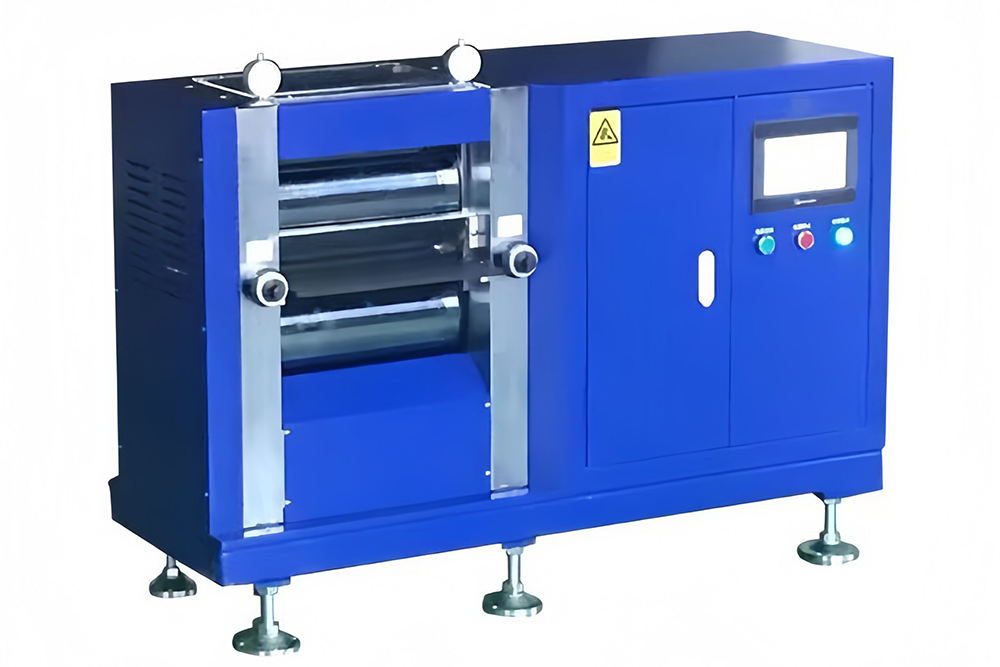

Hydraulic Rolling Press Machine for Electrode Calendering

The Hydraulic Rolling Press Machine is a precision, electric rolling speed-adjustable press. The hydraulic system provides the pressure for roll rolling, and it is suitable for occasions that require high rolling force and rolling gap consistency. This cold roller press’s horizontal and vertical rolling uniformity is good, and the rolled product has a high-quality appearance.

Features

• The hydraulic system automatically controls the rolling pressure.
• The inside and outside rollers are high hardness, excellent wear resistance.
• The hydraulic balanced rolling mechanism ensures stable pressure maintenance and excellent uniformity in both transverse and vertical rolling.
• The roll-to-roll assembly is optional.

Specifications

Product Name	Hydraulic Rolling Press Machine
Rolling Pressure	Max 25 T
Rolling Speed	Max 6m/min
Hardness of Rollers	HRC 62-68
Diameter of Rollers	200 mm
Width of Rolling	300 mm
Surface Roughness	Ra: ≤0.4
Press Accuracy	±2.5 μm
Press Gap	0-2 mm
Required Air Pressure	0.5~0.8MPa
Working Voltage	AC220V/50Hz, or AC110V/60Hz
Rated Power	1.5KW
Overall Dimensions	1500mm*600mm*1300mm(L*W*H)
Net Weight	1 T
