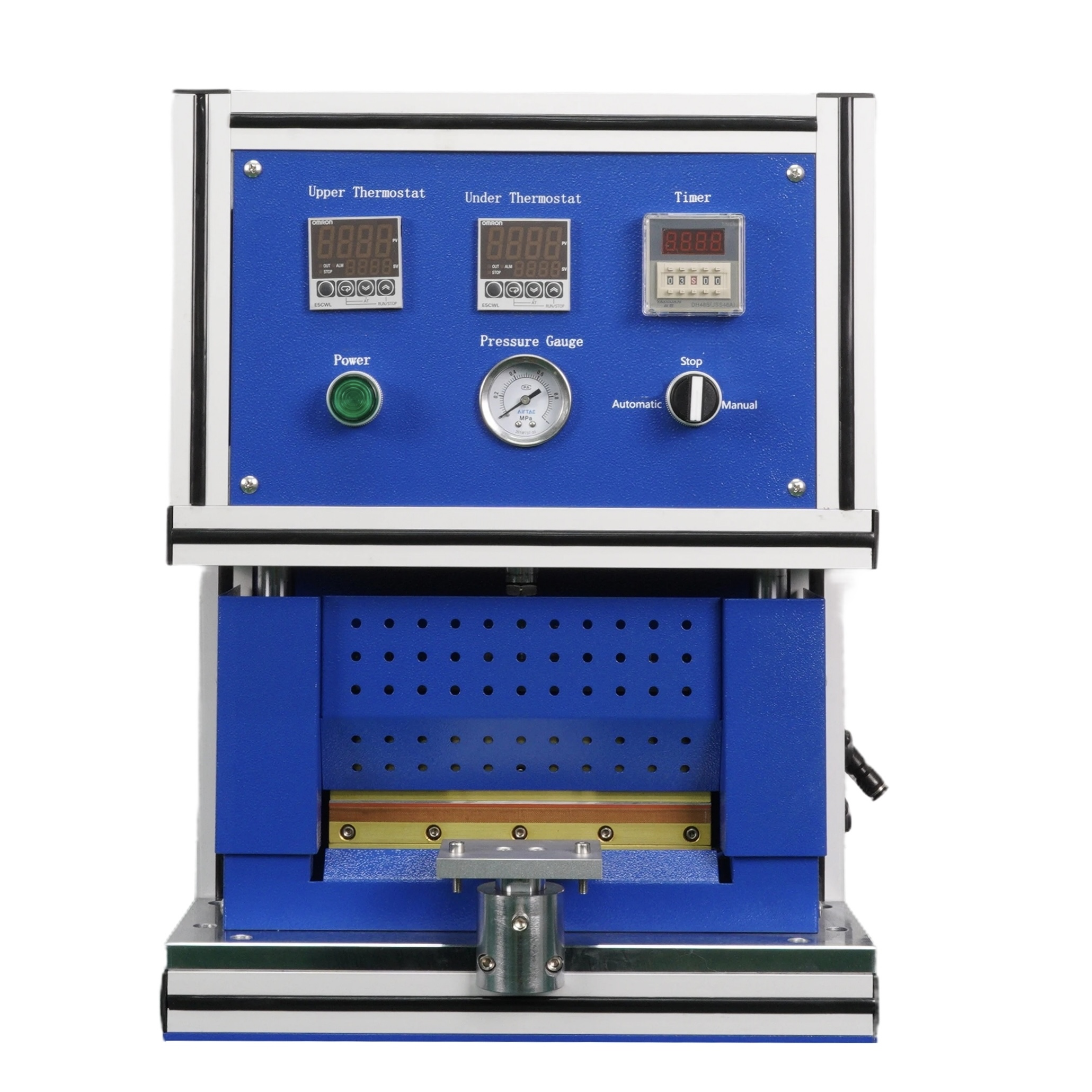

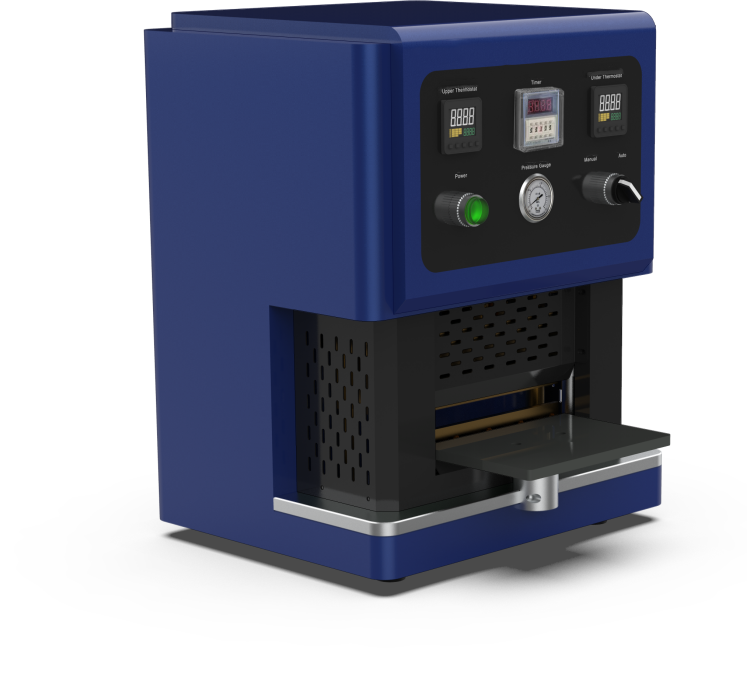

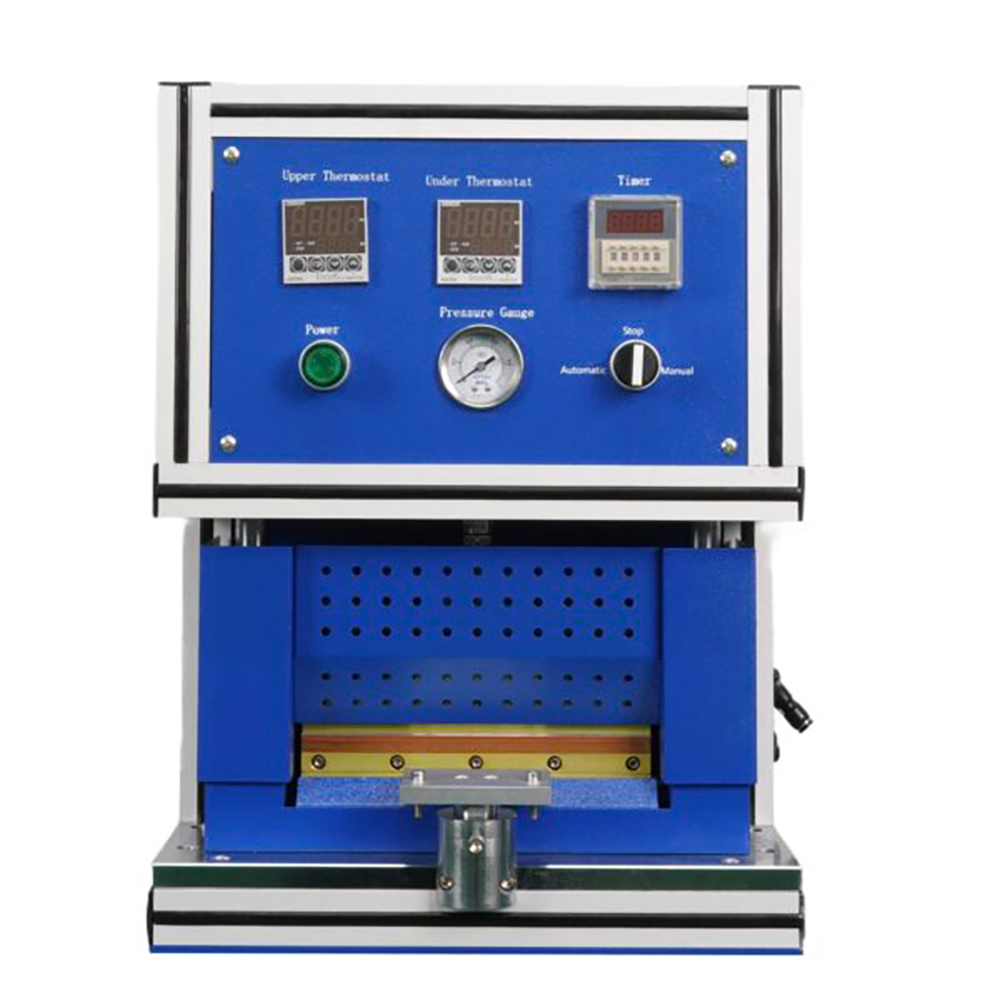

Thermal Sealing Machine for Pouch Cell Preparation

Model: LT-SFZ200, LT-SFZ300, LT-SFZ400
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-SFZ200 | 300 | 400 Category:
Guaranteed Safe Checkout

This Thermal Sealing Machine for Pouch Cell Preparation is mainly used for sealing the top and side edges of the aluminum laminate layers (typically PET/Aluminum/PP)  for pouch-type lithium batteries. Heat is transferred from the heating tube to the sealing head (made of copper). Under pressure, the aluminum laminate layers are heated, softened, and bonded, ready to encapsulate electrodes and electrolyte.

Features

  • The temperature of the sealing heads can be adjusted manually and maintained constant
  • Built-in pressure gauge allows for observation and precise control of the sealing pressure
  • Firm, flat and uniform sealing
  • Energy saving – up to 50% energy saving compared to competitor’s
  • Both top and side sealing without replacing the die
  • Simple operation, safe and reliable, and compact design

SPECIFICATIONS

Product NameThermal Sealing Machine for Pouch Cells
VoltageAC220V/50Hz, or AC110V/60Hz
Rated Power1000W
Head Length≤200mm/≤300mm/≤400mm (depends on the model)
Sealing WidthStandard 5mm (can be customized as requested)
Sealing Edge Thickness0.15~0.3mm
Applicable SizeSide seal ≤ 200 mm, top seal ≤ 200 mm (including gas bag)
Side seal ≤ 300 mm, top seal ≤ 300 mm (including gas bag)
Side seal ≤ 400 mm, top seal ≤ 400 mm (including gas bag)
(Depends on the model. It can be customized as requested.)
Upper Sealing Head TemperatureMax 300℃, 200℃ Recommended
Lower Sealing Head TemperatureMax 300℃, 100℃ Recommended
Sealing Pressure0.5 to 0.7 MPa Adjustable
Sealing TimeStandard 2s – 3s (0 to 99s Adjustable)
DimensionLT-SFZ200: 320*320*500mm (L*W*H)
LT-SFZ300: 420*420*500mm (L*W*H)
LT-SFZ400: 470*470*500mm (L*W*H)
Net WeightLT-SFZ200: 30KG
LT-SFZ300: 40KG
LT-SFZ400: 50KG
