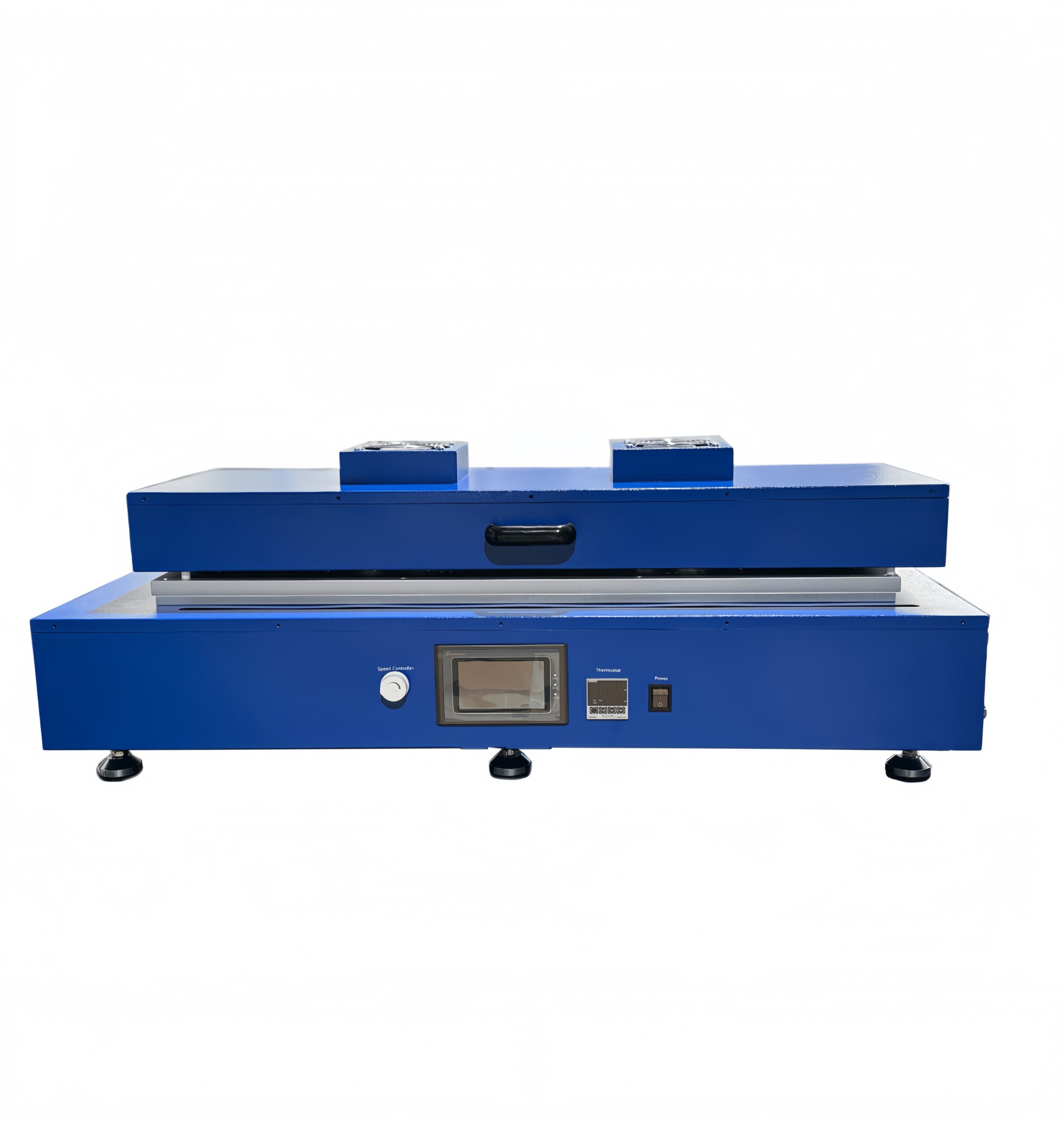

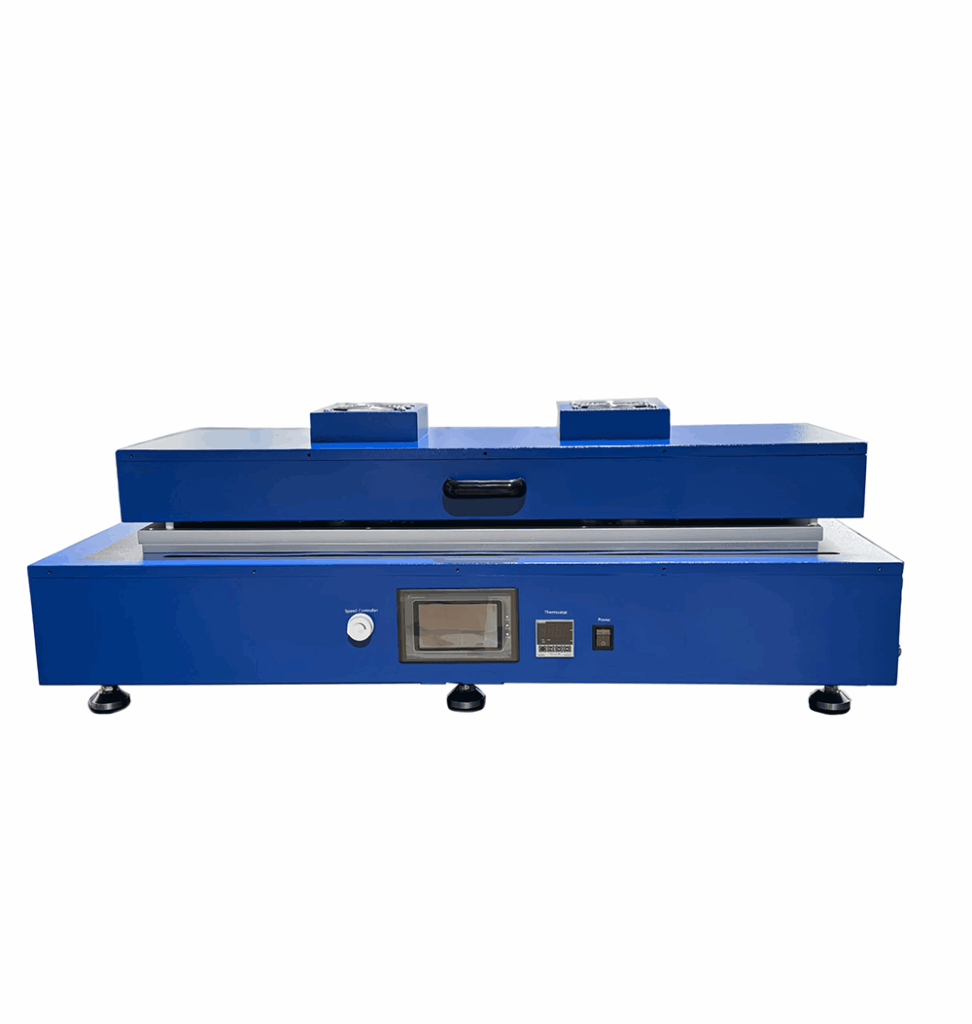

The Automatic Film Coating and Drying Machine is designed for high-precision and uniform film application on various substrates, including metal foils, PET films, and glass. It is widely used in the research and production of lithium-ion batteries, solid-state electrolytes, supercapacitors, electronic materials, and functional coatings.
This equipment integrates automated slurry feeding, adjustable coating speed, controllable coating thickness, and a precision drying system into a single compact unit, ensuring efficient, consistent, and high-quality film preparation.
Features
- The coating speed is adjustable within the range of 0 to 100 mm/s.
- The drying system features a digital temperature display with a maximum working temperature of 150°C.
- The stroke distance can be adjusted between 10 and 800 mm using a limit switch.
- Equipped with a vacuum aluminum disc for quick placement or removal of substrates; includes an adjustable coater.
Specifications
| Product Name | Automatic Film Coating and Drying Machine |
| Coating Speed | 0 ~ 120 mm/s |
| Stroke Length | Max 800 mm |
| Vacuum Plate | Equipped with an aluminum flat plate |
| Vacuum Plate Size | 900mm*200mm*32mm (L*W*H) |
| Coating Thickness | 0.01 ~ 3.5mm |
| Heating Temperature | Room temperature ~ 130°C, digital temperature controller, accuracy ±1°C |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 1.8KW |
| Net Weight | 70 KG |
| Product Dimensions | 1000mm*350mm*320mm(L*W*H) |
