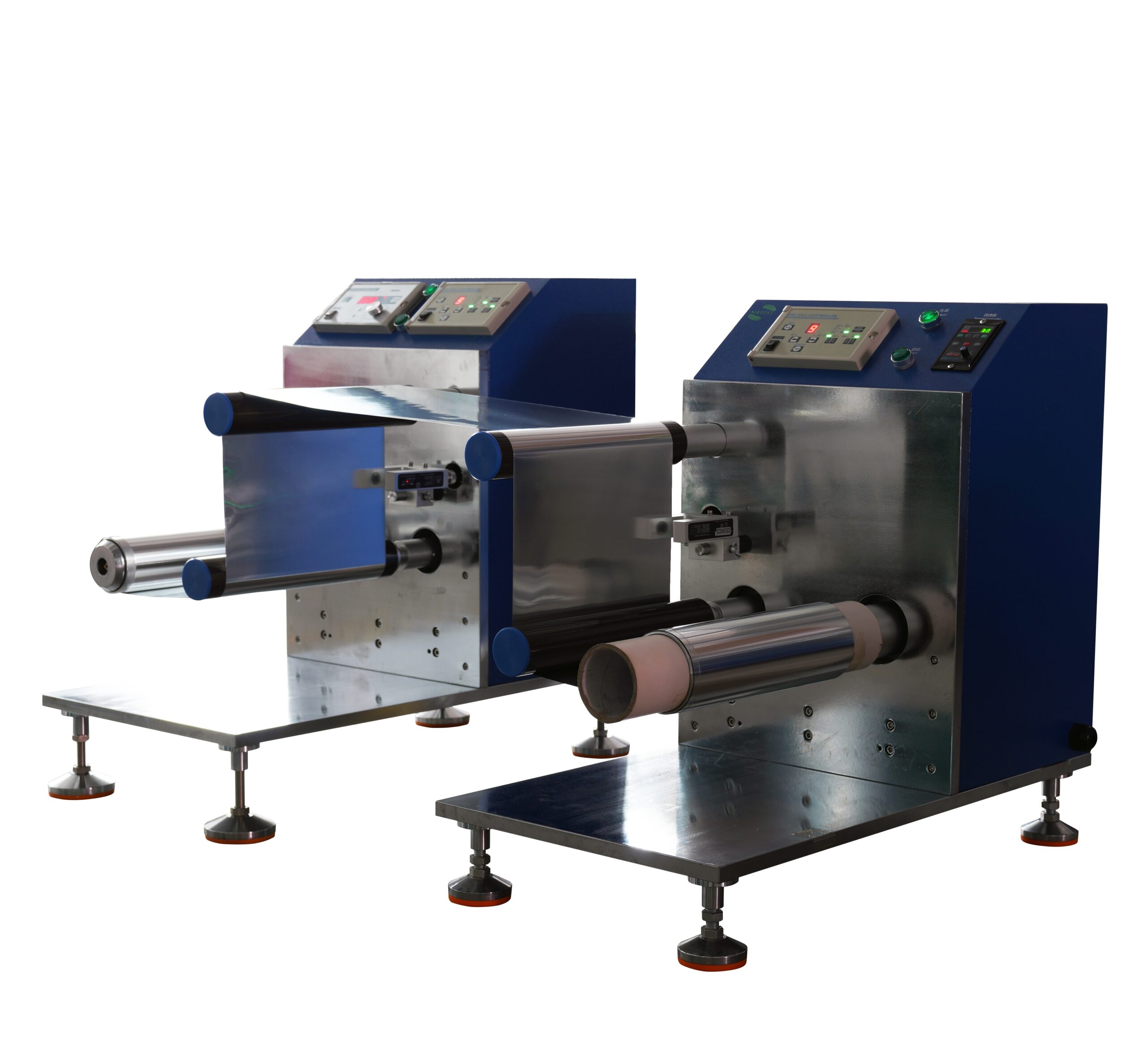

The Automatic Reel-Unreeling Machine is a type of equipment that can be used for winding and unwinding electrode sheets. The equipment is equipped with an independent self-control system to achieve automatic reeling and unreeling functions. It can work with a roller machine to roll lithium-ion battery cathodes and anodes, and can also be used for reeling and unreeling of materials such as optical films and functional films.
Features
- Auto-reeling with automatic tension control.
- The reeling design includes a deviation correction function, ensuring uniform reeling.
- The machine is equipped with an independent electrical control system and can also be linked with other equipment through relay interfaces.
- The structure consists of a reeling part and an unreeling part.
- Passive unreeling and manual adjusting of tension.
SPECIFICATIONS
| Product Name | Automatic Reel-Unreeling Machine |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 500 W |
| Tension Control | Max 50N |
| Reeling / Unreeling Diameter | 250 mm |
| Alignment Accuracy | ±0.5 mm |
| Installation Dimensions | Unreeling: 450mm*900mm*500mm(L*W*H) Reeling: 500mm*900mm*500mm(L*W*H) |
| Net Weight | Unreeling: 120Kg Reeling: 170Kg |
| Running Method | Continuous operation |
| Reeling Width | ≤ 300 mm |
| Speed Control | Max 6m/min |
