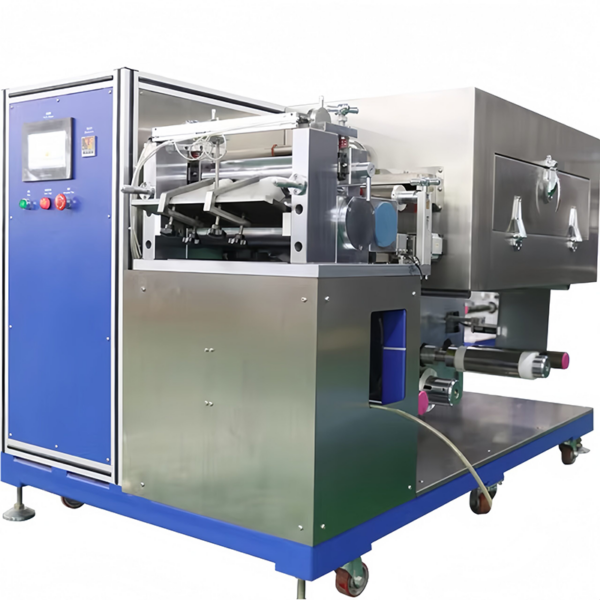

The electrode Coating System is a three-roll transfer coating equipment that can perform both continuous and intermittent coating, and is conveniently applied to the equipment for surface coating processes on various substrates. Especially used in the lithium-ion battery industry. This equipment is designed to provide researchers with convenience while meeting the requirements of coating accuracy and consistency. The drying effect is excellent. It is ideal for lithium-ion batteries, supercapacitors, nickel batteries, and others. Also, the electrode Coating System is Ideal for secondary battery R&D and testing.
SPECIFICATIONS
| Coating Method | Continuous coating |
| Roller Width | 330mm |
| Coating Speed | 200~900mm/min (Adjustable) |
| Coating Width | Max 300mm |
| Coating Thickness | 40~200μm |
| Coating Accuracy | ± 3μm |
| Coating Thickness Adjustment | Manual adjustment |
| Reeling/Unreeling Diameter | Ø 250mm |
| Reeling Accuracy | ± 0.5mm |
| Tension Control of Substrates | Max 60N |
| Display Accuracy of the Dial Indicator | 1μm |
| Heating Temperature | Room temperature ~ 120℃ |
| Drying Method | Hot air drying |
| Required Air Pressure | 0.5~0.7Mpa |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 5KW |
| Product Dimensions | 1800*1200*1200mm(L*W*H) |
| Net Weight | 1000 KG |
