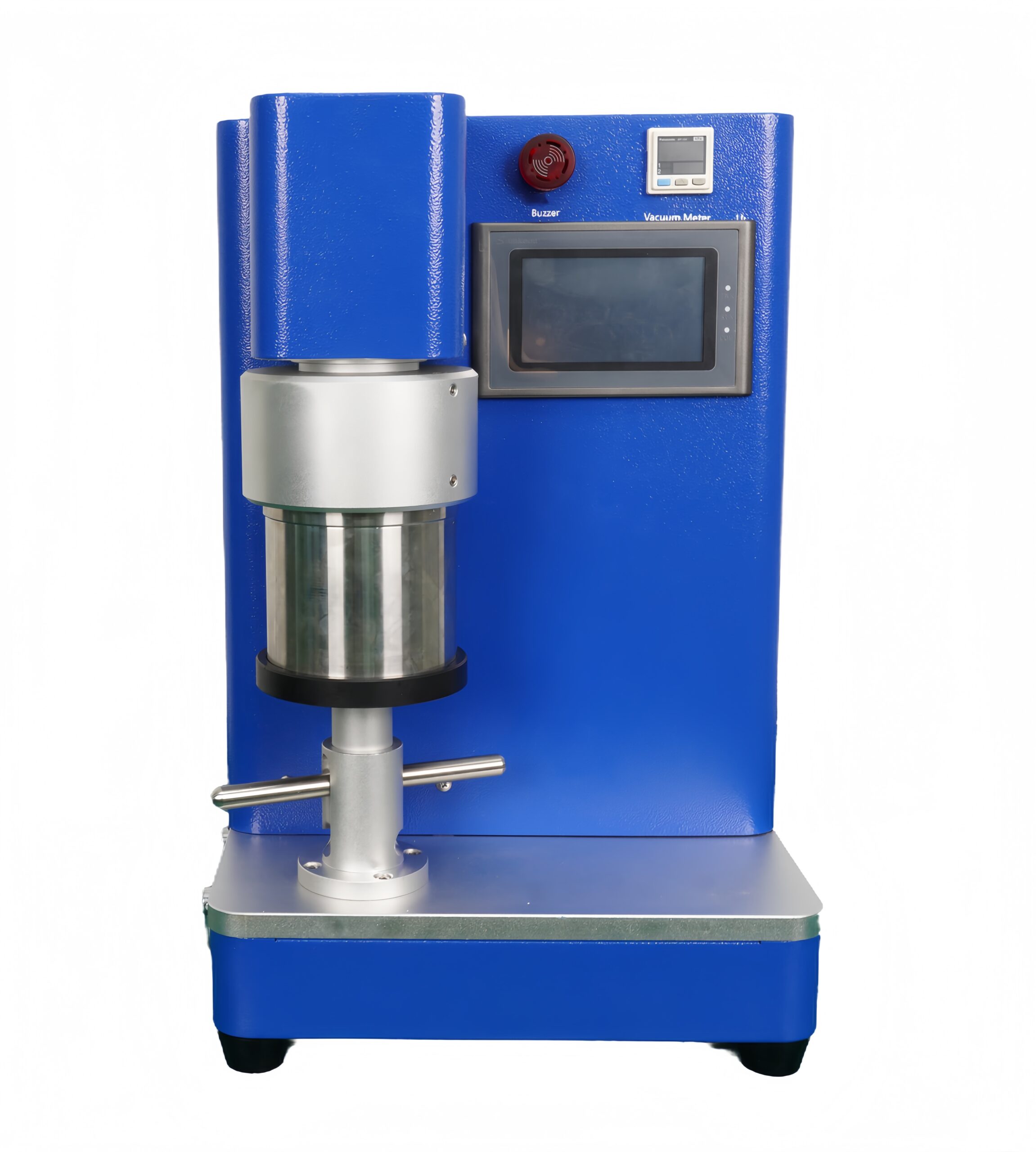

Planetary Vacuum Slurry Mixer with Container


SKU: LT-XJB-4 Categories: ,
Guaranteed Safe Checkout

This planetary vacuum slurry mixer makes slurry for the cathode and anode electrode materials. It is also used to mix powder materials and various ceramics. The mixing is in a vacuum, so there are no bubbles formed during the stirring.

  • An integrated vacuum system eliminates the bubbles generated by the stirring.
  • Stirring paddles can be customized. Twin-shaft planetary stirring paddle and single-shaft are available.
  • Multi-stage stirring can be done with each stage’s stirring speed and time programmed.
  • Forward and reverse stirring is available for higher viscosity slurry.


Rated power200W
Stirring speedMax 600 rpm
Multi-segment functionThree segments can be programmed between 0~600 min
Vacuum-0.08Mpa maintained for 2hours
Vacuum pumpBuilt-in vacuum pump
Mixing jarStandard double-shaft screw stirring paddle
Mixing volumeOptional 150ml ~ 500ml SUS304 Stainless Steel Tank
Dimension335mm*325mm*575mm (L*W*H)
Net Weight35kg
Weight 50 kg
Tank Volume

250mL, 500mL
