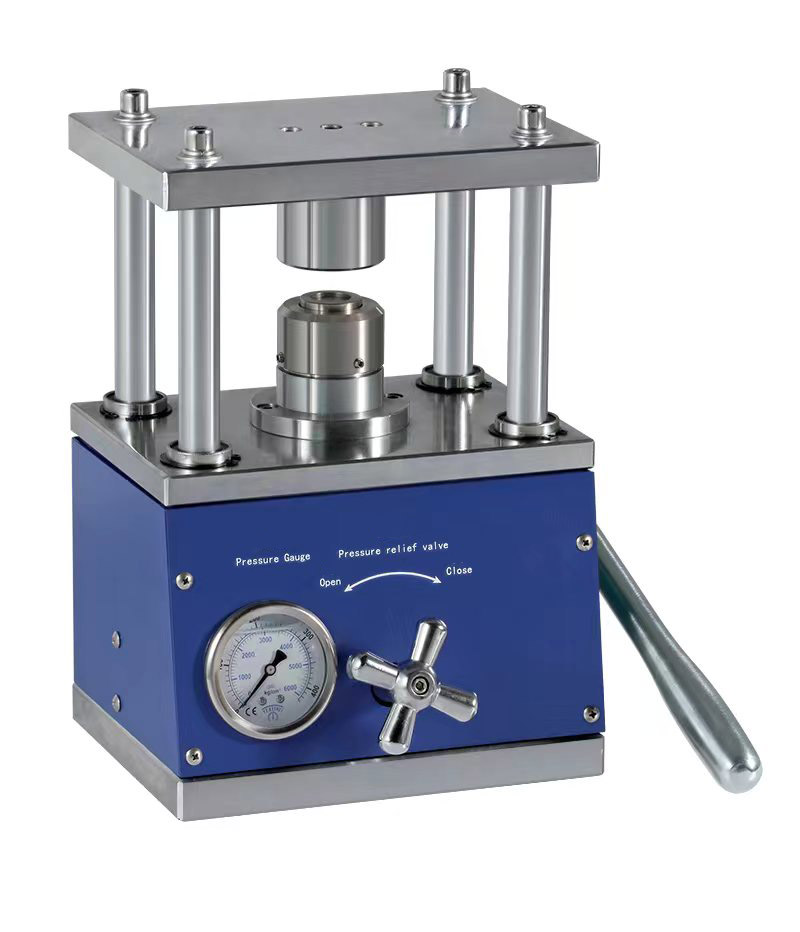

Hydraulic Coin Cell Crimper for CR20XX Cells

$1,699.00

SKU: LT-SF120 Category: Tag:
Guaranteed Safe Checkout

Hydraulic Coin Cell Crimper LT-SF120 is a coin cell crimper with a lightweight and small footprint. The crimper is suitable for sealing all CR20XX types of coin cells, such as CR2032, CR2025, and CR2016, with an included die. It can also crimp CR2325, CR2450, AG3, AG5, and other button cells with optional die sets.

SPECIFICATIONS:

Crimping DieOne crimping die for CR2032, CR2025, and CR2016 is included.
The Die is replaceable.
Overall Dimensions232mm * 190mm * 330mm
Net Weight30kg
Application NotesAttention: The built-in small hydraulic pump is not designed for holding high pressure. The pressure inside will be released gradually after reaching 50~80 Kg/cm2 (which is sufficient for assembling the coin cells). Please see the instructions about changing the upper and lower die parts to convert the unit to LF-CX120, which disassembles the coin cells.
AdditionalOne set of crimping dies for CR2032, CR2025, and CR2016 is included.
The Die is replaceable.
Weight 40 kg
