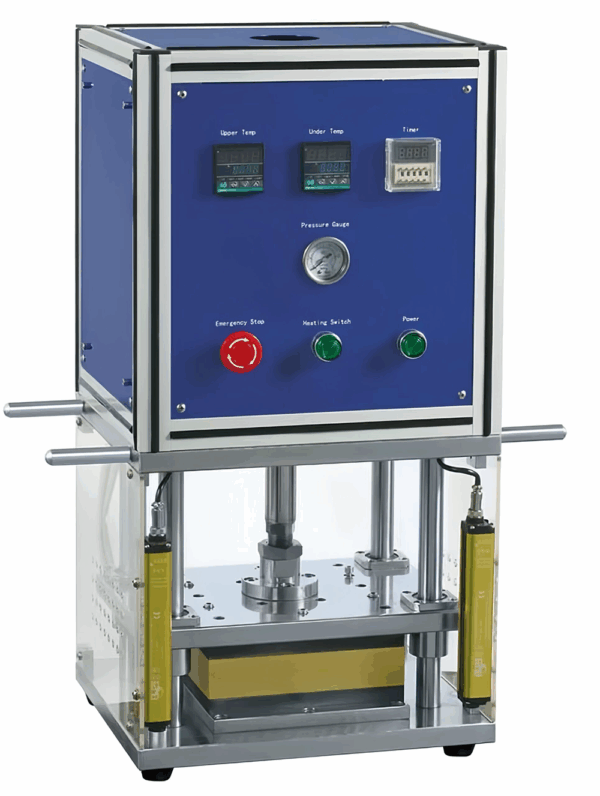

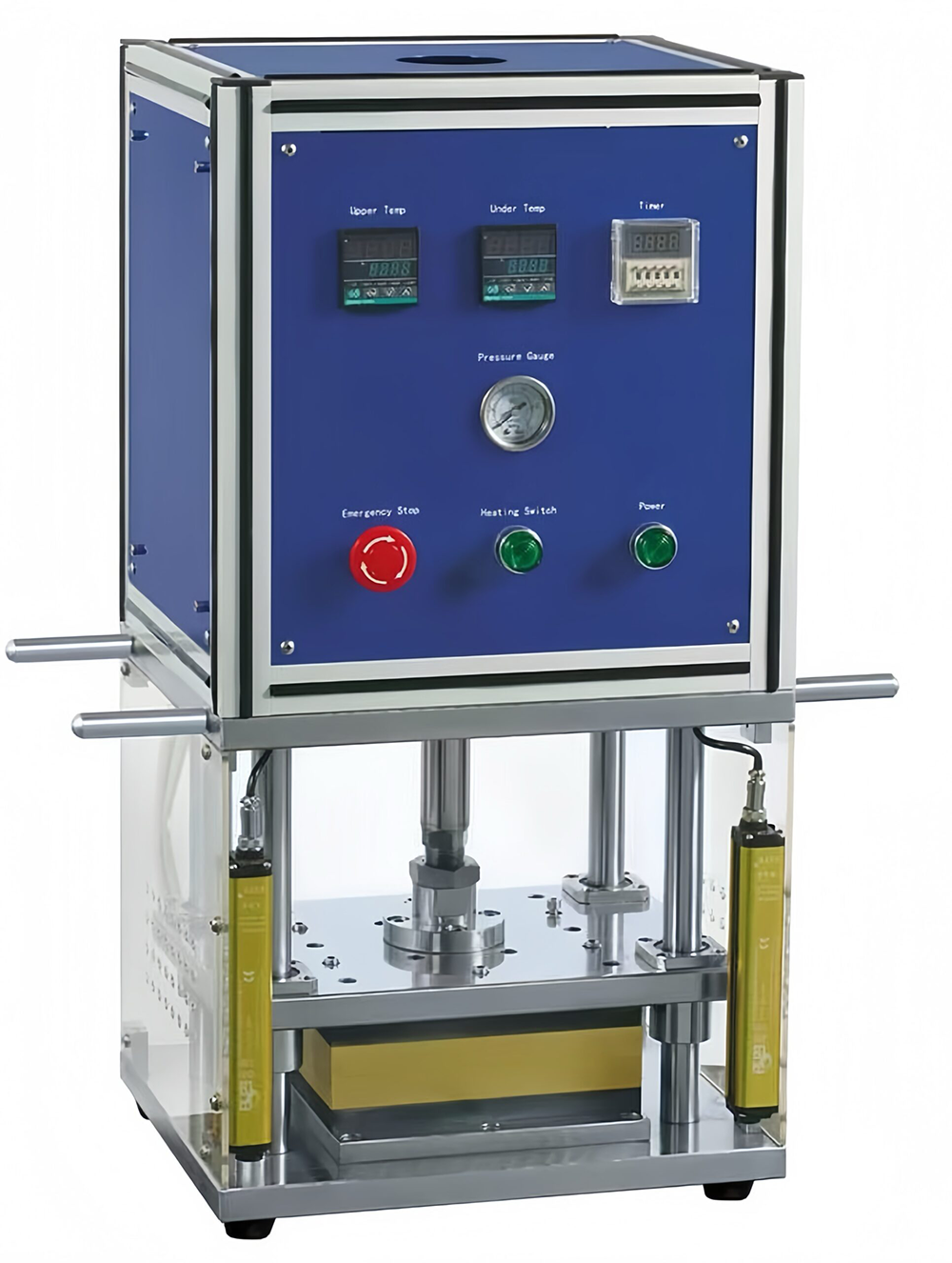

Hot Press Shaping Machine

Model: LT-RY200
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-RY200 Category:
Guaranteed Safe Checkout

A Hot Press Shaping Machine is a critical piece of equipment in lithium battery manufacturing, used to compress, shape, and thermally stabilize battery cells (primarily pouch cells and prismatic cells) after stacking or before final sealing. This process enhances electrode contact, reduces internal resistance, and ensures uniform thickness, thereby improving battery performance and safety.

Features

  • The temperature is automatically controlled, and an automatic hot-pressing timer is used
  • Pressure can be continuously adjusted
  • Heating part made of durable copper
  • Compact designed, user-friendly, and operates with flexibility and speed control.

Specifications

Product nameHot Press Shaping Machine
Hot press areaL200*W200mm
Working speed300-500 times per hour
Applied pressure0-1T
Working VoltageAC220V/50Hz, or AC110V/60Hz
Required air pressure0.5-0.7Mpa
Rated power1KW
Overall Dimensions320mm*320mm*430mm(L*W*H)
Net Weight60KG
Hot Press Shaping Machine
Hot Press Shaping Machine
Weight 60 kg
Power Option

110V 60Hz, 220V 50Hz

Delivery Liftgate Service

I do not need liftgate service., Yes, I need liftgate service.
