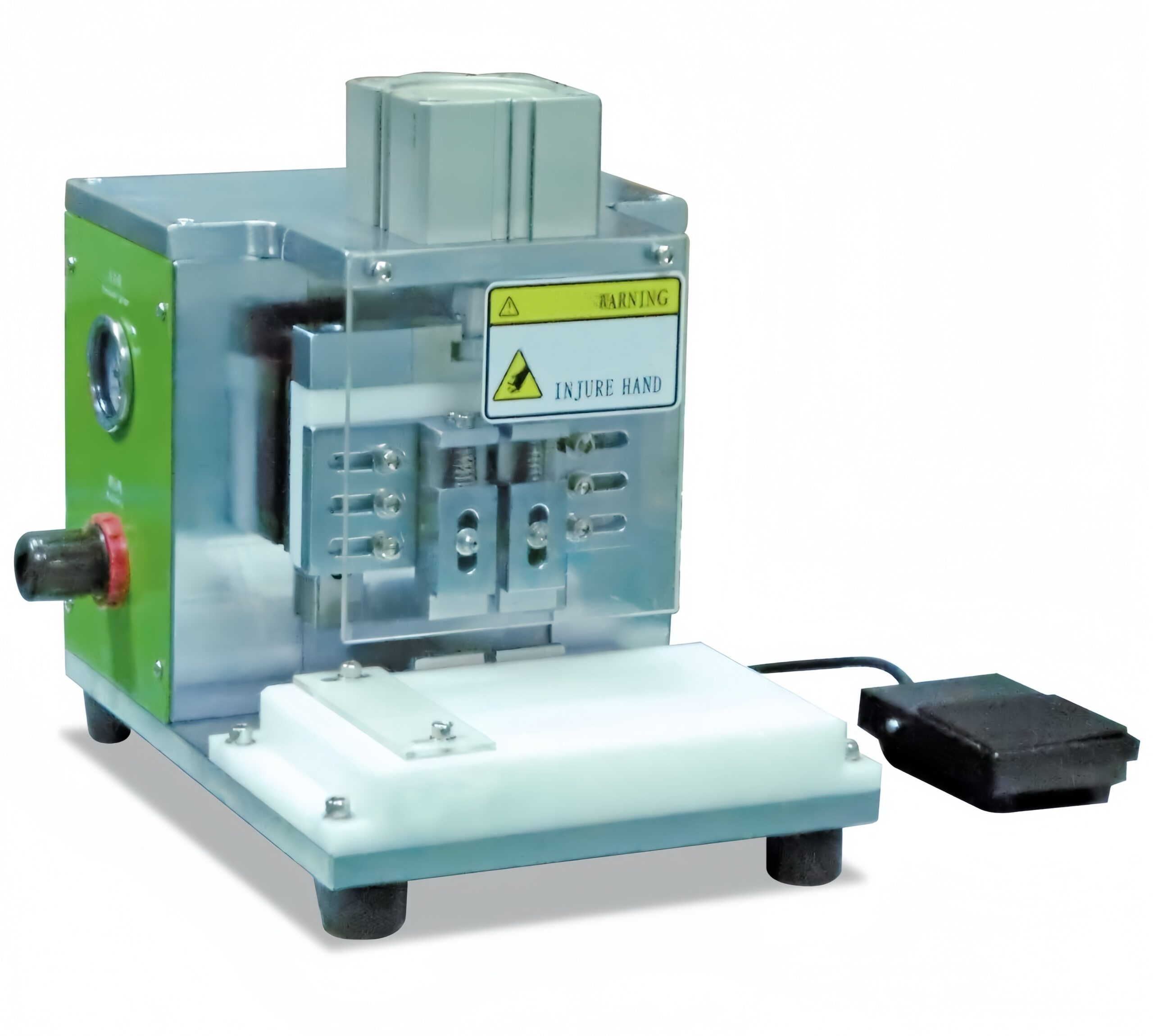

The Double Tabs Cutting Machine is a precision piece of equipment, specifically for cutting and shaping dual electrode tabs (anode and cathode) with high accuracy. This machine ensures clean, burr-free cuts, preventing short circuits and improving current collection efficiency in pouch-type lithium-ion batteries.
Features
- The system employs linear guide rails for precise guidance, ensuring zero gap between the upper and lower cutting blades with exceptional durability.
- The upper and lower cutting blades are made of high-quality steel, ensuring sharp edges.
- The dual cutting blades are electrically insulated from each other.
- A cylinder controls the cutting blades to trim the edges of battery electrodes and tabs, facilitating automation.
- A product positioning tray is provided for easy placement and alignment of the battery cells.
- The positioning blocks of the cutter and the side of the battery of the tab cutting machine are adjustable.
- Reliable, convenient, and efficient.
SPECIFICATIONS
| Product Name | Lithium Battery Double Tabs Cutting Machine |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 120W |
| Product Size | The center distance of the tab is within 250 mm. |
| Cutting Blade | Length: 80mm |
| Cutting Blade Durability | 1 million times/grinding |
| Cutting Speed | 600 times/hour |
| Compressed Air Requirement | 0.5Mpa～0.7Mpa |
| Product Dimension | 230mm*200mm*250mm(L*W*H) |
| Net Weight | 50Kg |
