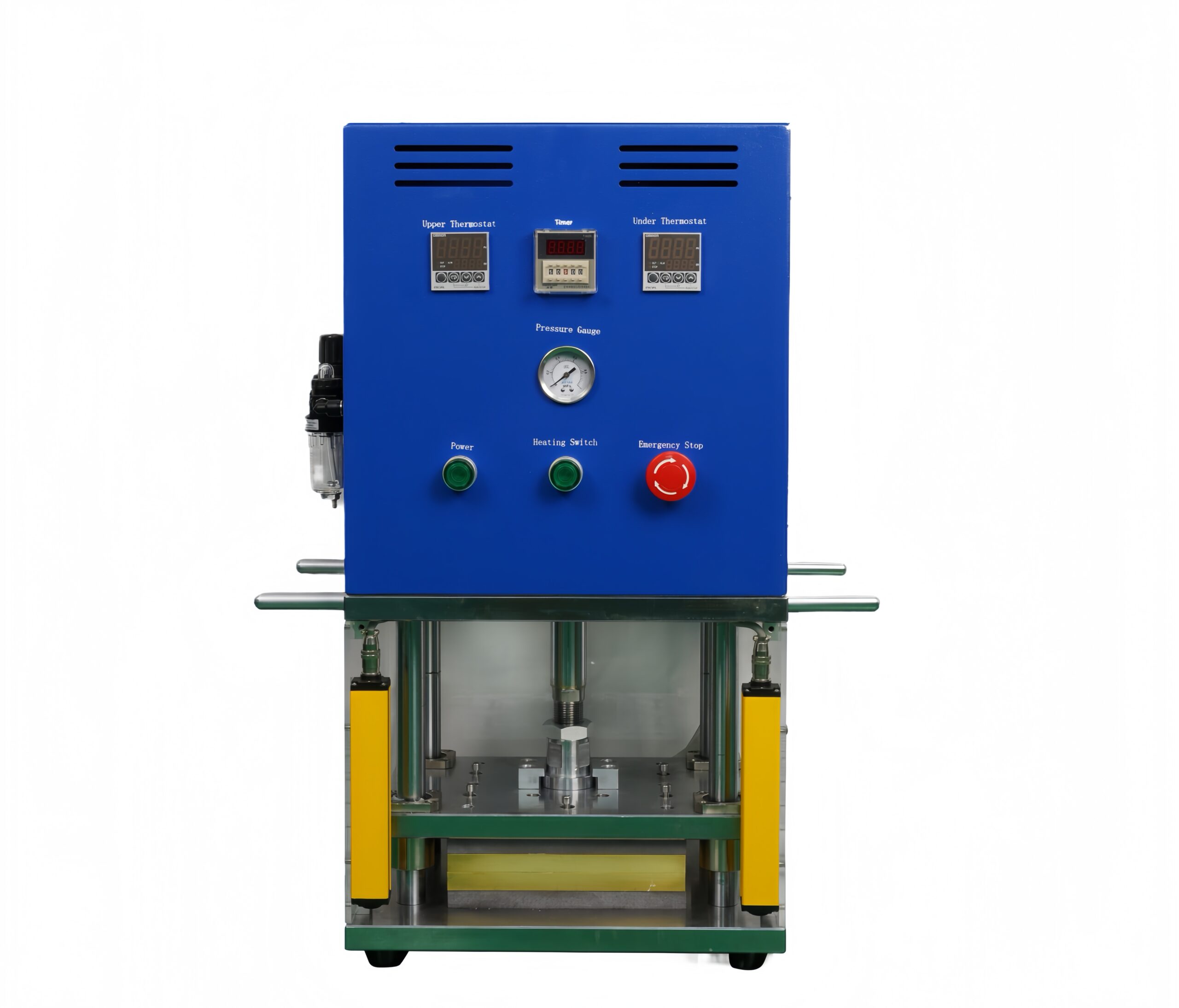

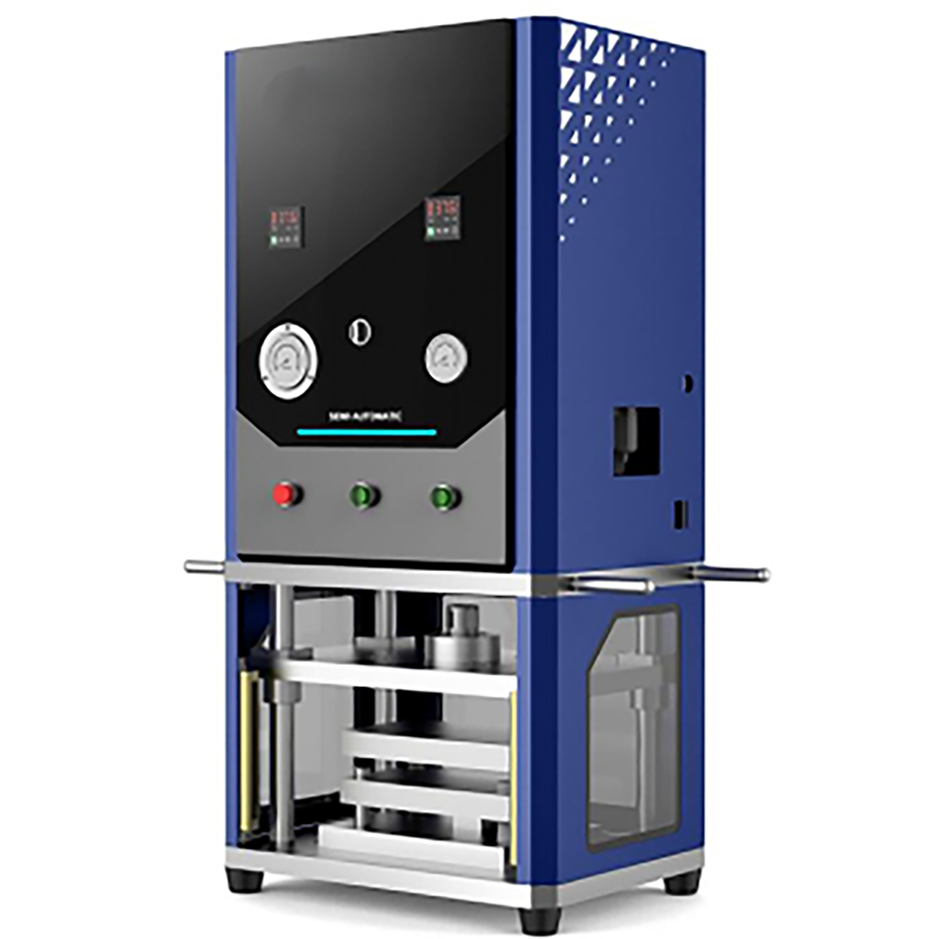

A Pouch Cell Case Cup Forming Machine is a specialized piece of equipment used in lithium-ion battery manufacturing to shape aluminum laminated films into precise pouch cell casings. These casings house the electrode assemblies and electrolytes in pouch-type lithium-ion batteries, commonly used in EVs, consumer electronics, and energy storage systems. It can produce pouch cell batteries with dimensions of L300 mm* W280 mm* H6mm. The size can also be custom-made according to the customer’s requirements.
Features
- Punch depth simple and quick to adjust.
- Replacement of the die is convenient and quick.
- Removes excess material and trims edges to achieve the final pouch dimensions
- Equipped with a light curtain, dual-button operation, and outer cover protection for safe use.
- Compared with similar products, this product can stretch aluminum laminated films of the same quality deeper and more stably.
- Simple operation, safe and reliable, and compact design.
Specifications
| Product Name | Pouch Cell Case Cup Forming Machine |
| Die Size | LT-SCK200: Max L200mm, W150mm LT-SCK300: Max L300mm, W150mm (customizable as required) |
| Boost Punch Pressure | LT-SCK200: 3T max, adjustable LT-SCK300: 5T Max, adjustable |
| Count | Counter display |
| Input Power | AC220V/50Hz, or AC110V/60Hz |
| Rated power | 100W |
| Input Air Pressure | 0.5MPa~0.7MPa |
| Net Weight | About 180 Kg. |
| Product Dimension | LT-SCK200: 460*320*925mm(L*W*H) LT-SCK300: 560*420*925mm(L*W*H) |
| Pouch Depth | Max 6mm, depends on aluminum laminated films |
| Mold Surface Roughness | 0.4 |
| Upper and Lower Mold Flatness | 0.02 mm |
| Mold Core Flatness | 0.02 mm |
