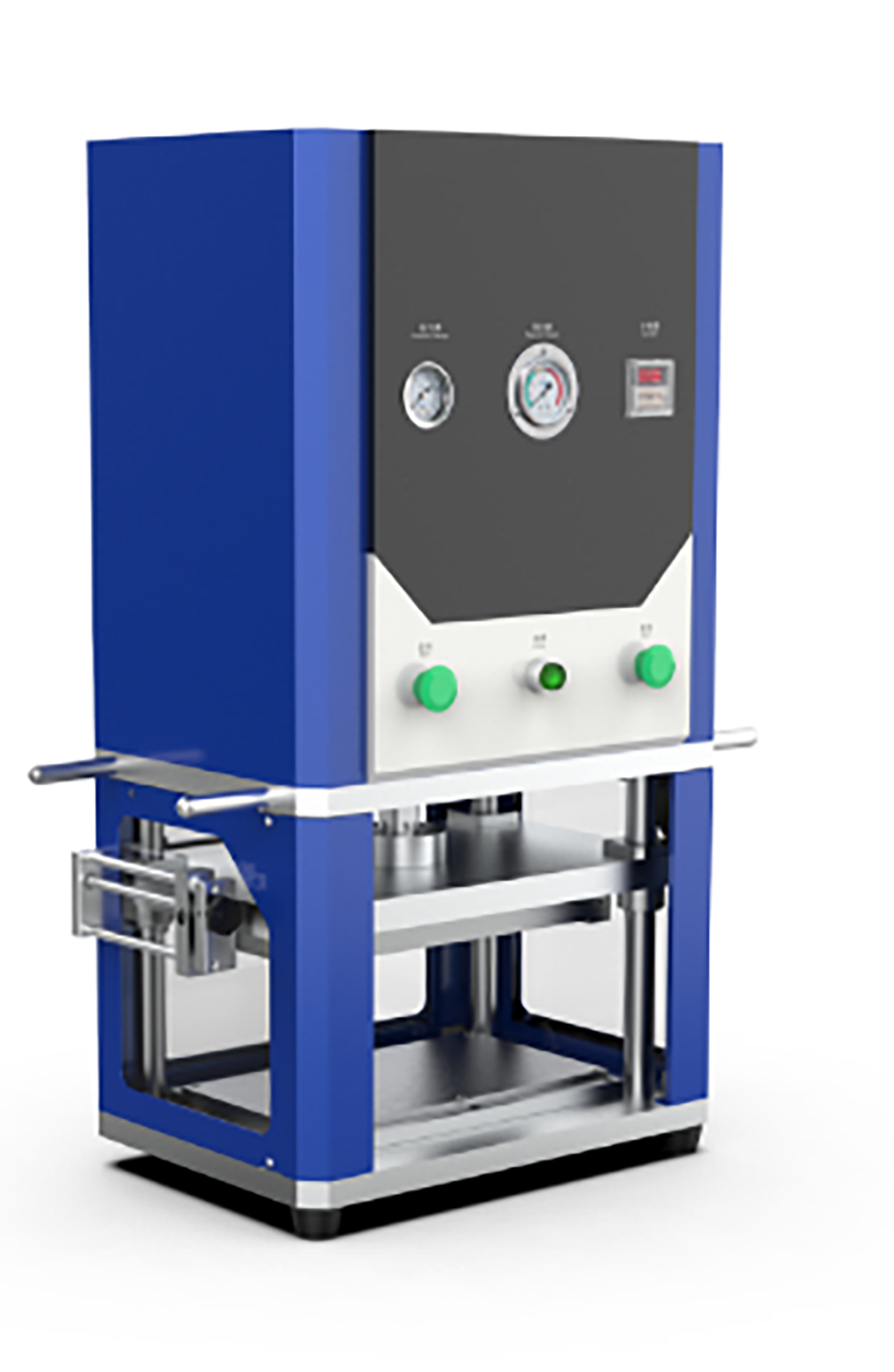

Precision Electrode Die Cutting Machine for Pouch Cell Preparation

Model: LT-MQ280
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-MQ280 Category:
Guaranteed Safe Checkout

A Precision Electrode Die Cutting Machine is a critical equipment in lithium-ion battery manufacturing, designed to cut anode and cathode electrode sheets into precise shapes and dimensions for pouch cell assembly. It ensures high accuracy, clean edges, and minimal material waste, directly impacting battery performance and production efficiency.

Features

  • Equipped with an infrared positioning device for accurate and convenient electrode positioning and die-cutting.
  • The die can be replaced conveniently and quickly.
  • The die-cutting blade has long durability, with a normal usage of ≥30,000 cycles.
  • Without quality defects such as burrs.
  • Semi-automatic operation, achieving 800–2,000 pieces/hour efficiency.
  • Easy to operate, safe and reliable, compact in size.

Specifications

Product NamePrecision Electrode Die Cutting Machine
Working VoltageAC220V/50Hz, or AC110V/60Hz
Rated Power100 W
Required Air Pressure0.5Mpa-0.8Mpa
Electrode Die Cutting SizeMax 280*180 mm(L*W)
Air Cylinder3 T
Cutting Accuracy±0.1 mm
Electrode Cutting SizeMax L280*W180 mm
Product Dimensions550*455*900mm (L*W*H)
Net Weight180kg
Semi-auto Die Cutting Machine
Semi-auto Die Cutting Machine
Weight 180 kg
Power Option

110V 60Hz, 220V 50Hz
