Small Pouch Cell Case Single Cup Forming Machine for Aluminum Laminated Film

Model: LT-QCK65
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-QCK65 Category:
Guaranteed Safe Checkout

The Small Pouch Cell Case Single Cup Forming Machine is suitable for the die-cutting of positive and negative battery electrode plates. It uses a pneumatic method to punch single-piece electrode plates. It can be placed in the glove box.

SPECIFICATIONS

Product NameSmall Pouch Cell Case Single Cup Forming Machine
Applicable Aluminum Film Thickness0.10 – 0.20 mm
Applicable SizeMax 65mm*50mm (L*W), adjustable
Punching depth≤ 5 mm
Punching Accuracy±0.05 mm
Production Capacity200 – 400 pcs/hour
Punching PressureMax. 1T (0.5MPa compressed air)
The recommended pressure for punching battery pole pieces is 500kg
Compressed Air Pressure0.5 MPa – 0.7 MPa
Machine Dimensions380*240*400 mm (L×W×H)
Net WeightAbout 30kg

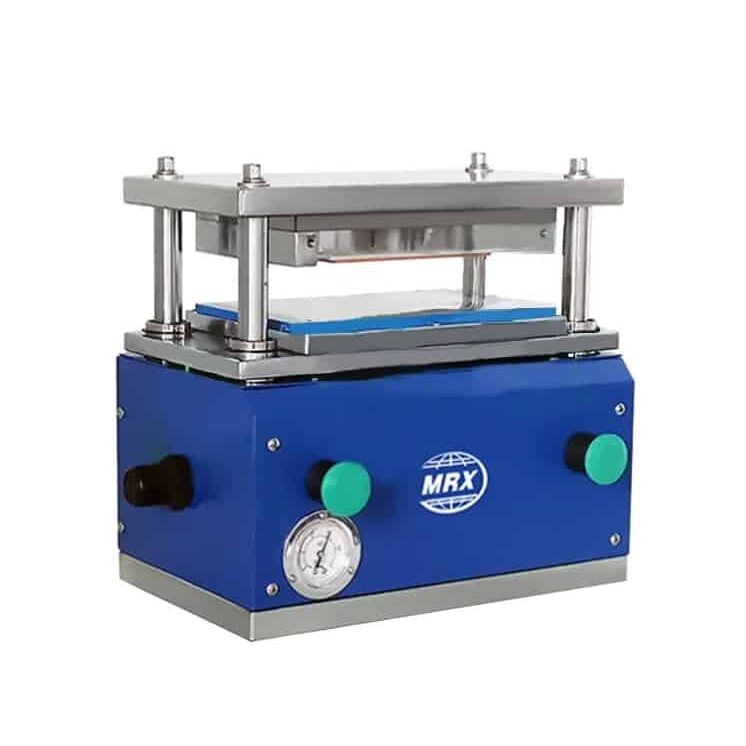

Small Pouch Cell Case Single Cup Forming Machine

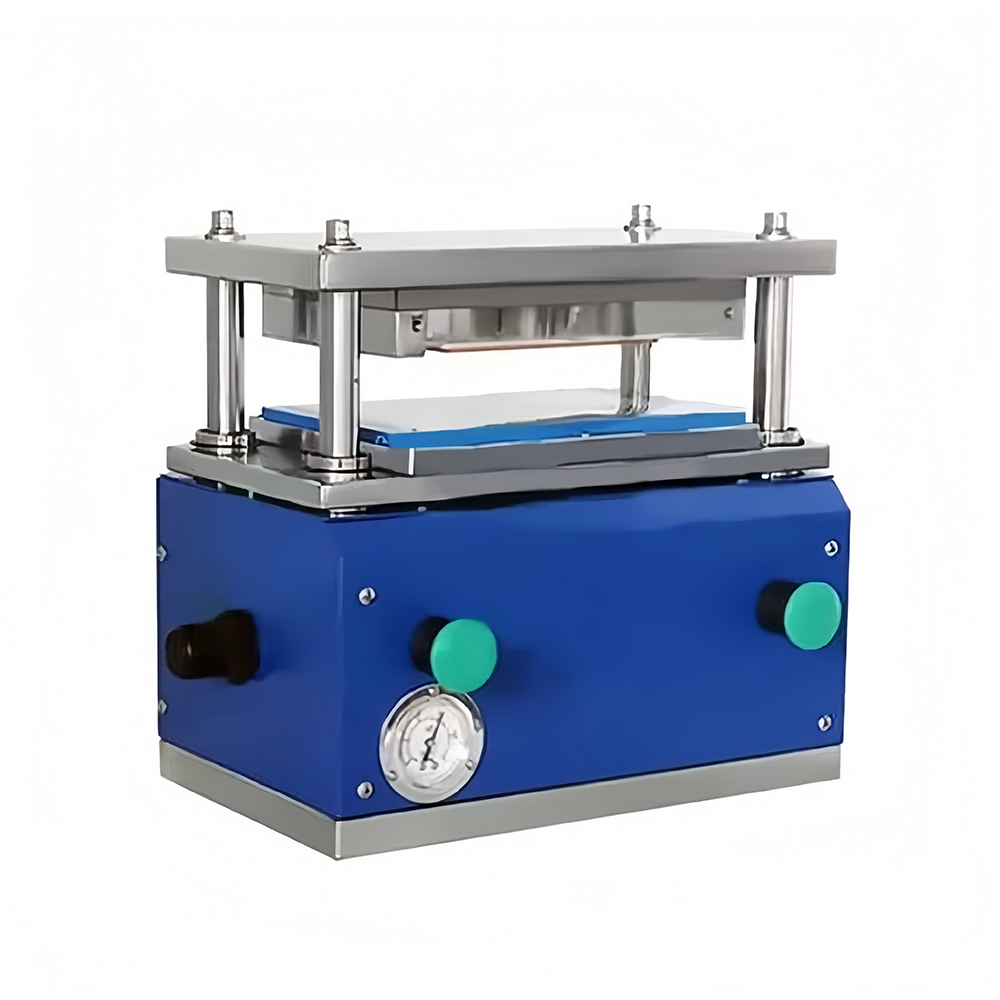

Small Pouch Cell Case Single Cup Forming Machine
Weight 32 kg
