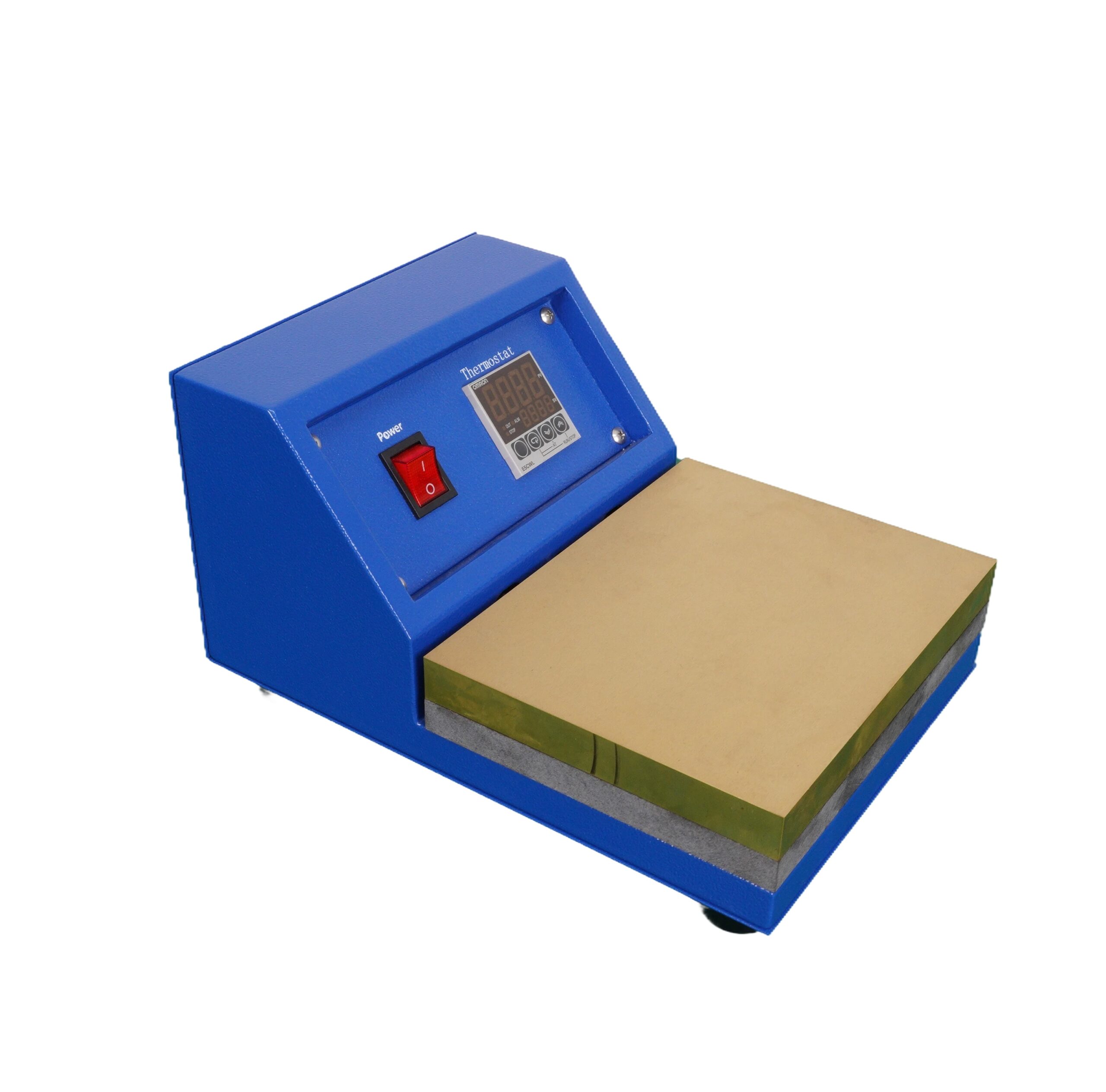

The Thermal Press Edge Shaping Machine for Pouch Cells ensures precise sealing and shaping of the pouch cell edges, which is critical for preventing electrolyte leakage, maintaining structural integrity, and ensuring long-term performance.
Features
- The temperature controller precisely controls the temperature of the heating plate, and the temperature can be adjusted arbitrarily from room temperature to 250°C.
- Unique safety protection and anti-scald design. The temperature of the platform can be adjusted and set through the buttons on the temperature controller panel.
- The sealing platform is made of copper material, which has a good heat transfer effect, saving electricity consumption and improving working efficiency.
- It can be applied to battery products of different specifications.
- The sheet metal adopts a three-dimensional geometric design, which is simple and beautiful.
- Small external dimensions, and the ironed edges are beautifully shaped.
SPECIFICATIONS
| Product Name | Thermal Press Edge Shaping Machine |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 1.5KW |
| Platform Size for Edge Heating | L200mm*W155mm |
| Heating Temperature | 0°C – 250°C ± 2°C, digital display |
| Heating Tube Power | 250W |
| Product Dimension | 280mm*200mm*165mm(L*W*H) |
| Net Weight | 20Kg |
| Heating Mechanism | Equipped with a copper heating workbench |
