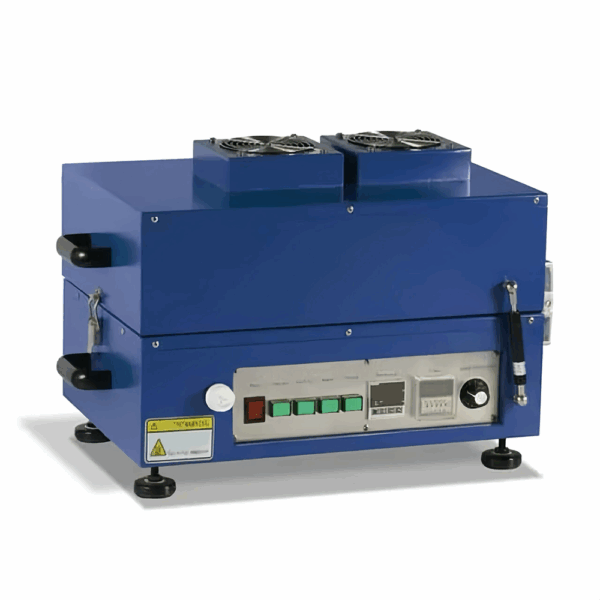

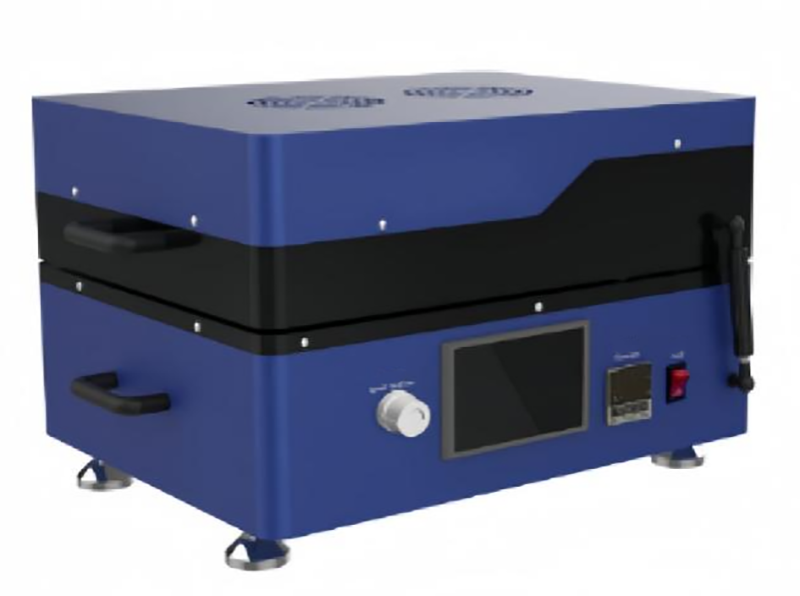

The Compact Film Coating Machine with Vacuum Chuck and Drying Heater for Battery Electrode is widely used in various high-temperature coating research, such as ceramic films, crystal films, battery material films, and special nano-films; it can adapt to the development of science and technology for film formation under high-temperature conditions in the future.
Features
- Using large area uniform heating to ensure high precision and uniform temperature in the cavity.
- Flat coating, motor-driven scraper coating, stable and adjustable coating speed.
- The coating film speed is adjustable. The vacuum aluminum pan can quickly place or remove copper foil, aluminum foil, etc., built-in vacuum pump or connected to an external vacuum source, and the substrate is adsorbed without deformation.
- Standard film dispenser, high coating precision, coating, Adjustable cloth thickness.
- Can be used in the glove box, easy to operate and small in size, which can save space.
- PLC Touch screen control for easy parameter setting.
Specifications
Product Name | Compact Film Coating Machine with Vacuum Chuck and Drying Heater |
Coating Stroke | Max 250mm |
Coating Speed | 0~100mm/s |
Vacuum Plate | Equipped with vacuum aluminum plate |
Dimension of the Vacuum Plate | 365mm*200mm*32mm (L*W*H) |
Coating Blade Range | 0.01 – 3.5 mm |
Voltage | AC220V/50Hz, or AC110V/60Hz |
Net Weight | 50KG |
Product Dimension | 500mm*310mm*330mm (L*W*H) |
