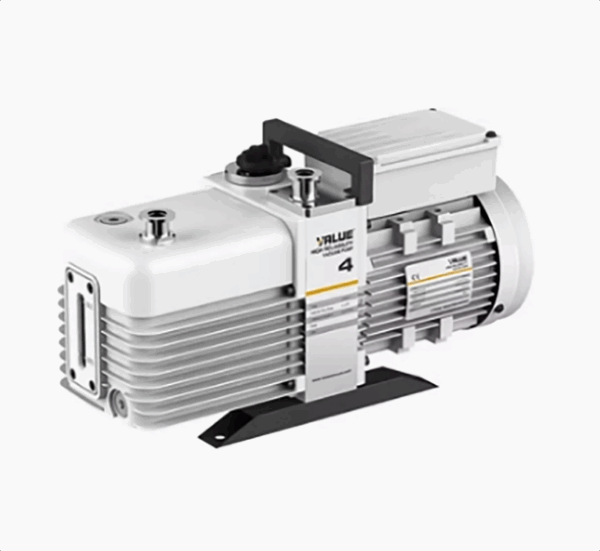

The Double-Stage Rotary Vane Vacuum Pump is a basic device used to evacuate gases from a sealed container. It can be used independently or as a backing pump for booster pumps, diffusion pumps, molecular pumps, and a pre-evacuation pump for titanium pumps, etc. It is characterized by its small size, light weight, and low noise.
Features
- High-quality oil mist filters effectively solve oil spraying and smoking issues, extending product durability.
- Sealing parts made of fluororubber material provide corrosion resistance and solve oil leakage problems.
- Equipped with a gas ballast valve to prevent water from mixing with the pump oil, which extends the durability of the pump oil.
- Compact, lightweight, low noise, and easy to start.
- Anti-backflow and anti-leakage features to protect environmental cleanliness.
SPECIFICATIONS
| Product Name | Double-Stage Rotary Vane Vacuum Pump |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 1.1 Kw |
| Pumping Rate | 28 m³/h |
| Maximum Pressure | ≤0.5 mbar |
| Motor Speed | 50Hz: 1400 rpm 60Hz: 1720 rpm |
| Noise | ≤58 Db |
| Net Weight | 30Kg |
