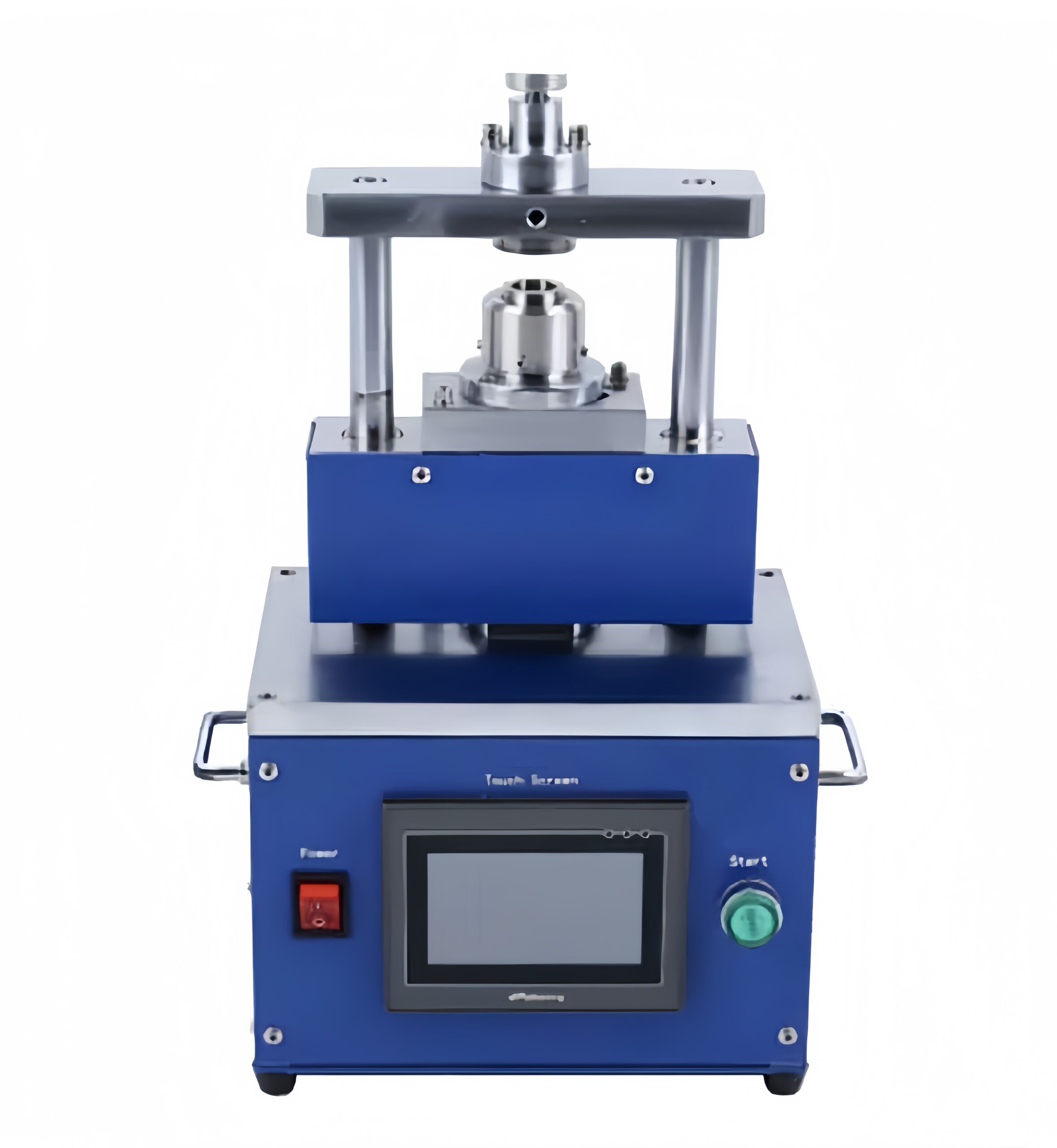

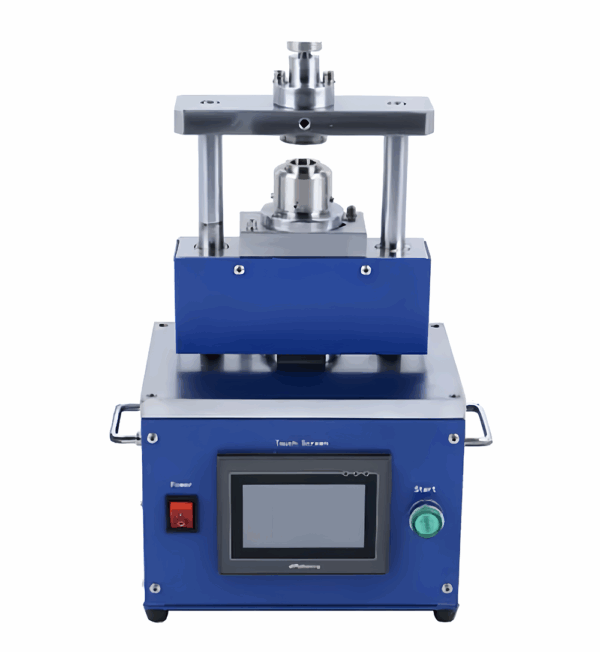

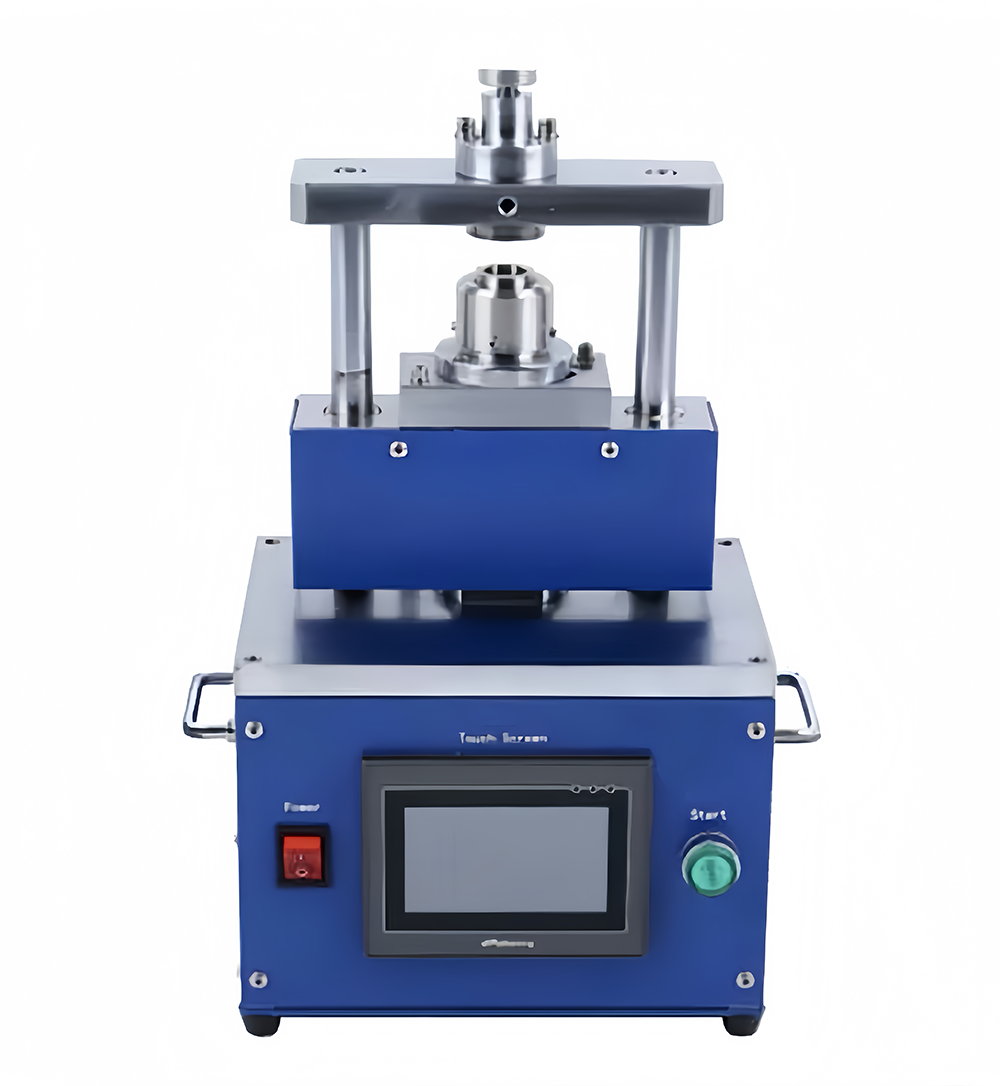

Electric Coin Cell Crimping Machine

Price range: $548.90 through $2,449.00

SKU: N/A Category: Tag:
Guaranteed Safe Checkout

The Electric Coin Cell Crimping Machine is used for sealing coin cell batteries and capacitors. An electric motor drives it. The machine has the advantages of high precision, easy operation, compact design, and reliable sealing. One set of molds is included for CR20XX coin cell batteries, such as CR2032, CR2025, CR2016, etc.

This machine is fully compatible with the Ar/N2 inert atmosphere. It can be easily transferred into the glovebox through the antechamber.

SPECIFICATIONS:

VoltageAC220V/50Hz, or AC110V/60Hz
Rated Power100W
Sealing PressureMax. 1000 kg, digitally adjustable
Sealing Stroke30mm
Product Dimensions250mm*185mm*450mm (L*W*H)
Net Weight25 kg
Weight 45 kg
Options

Crimper with a Die Set for CR20XX Cells, De-crimping Die Set Only (CR20XX)

Power Input

110V 60Hz, 220V 50Hz
