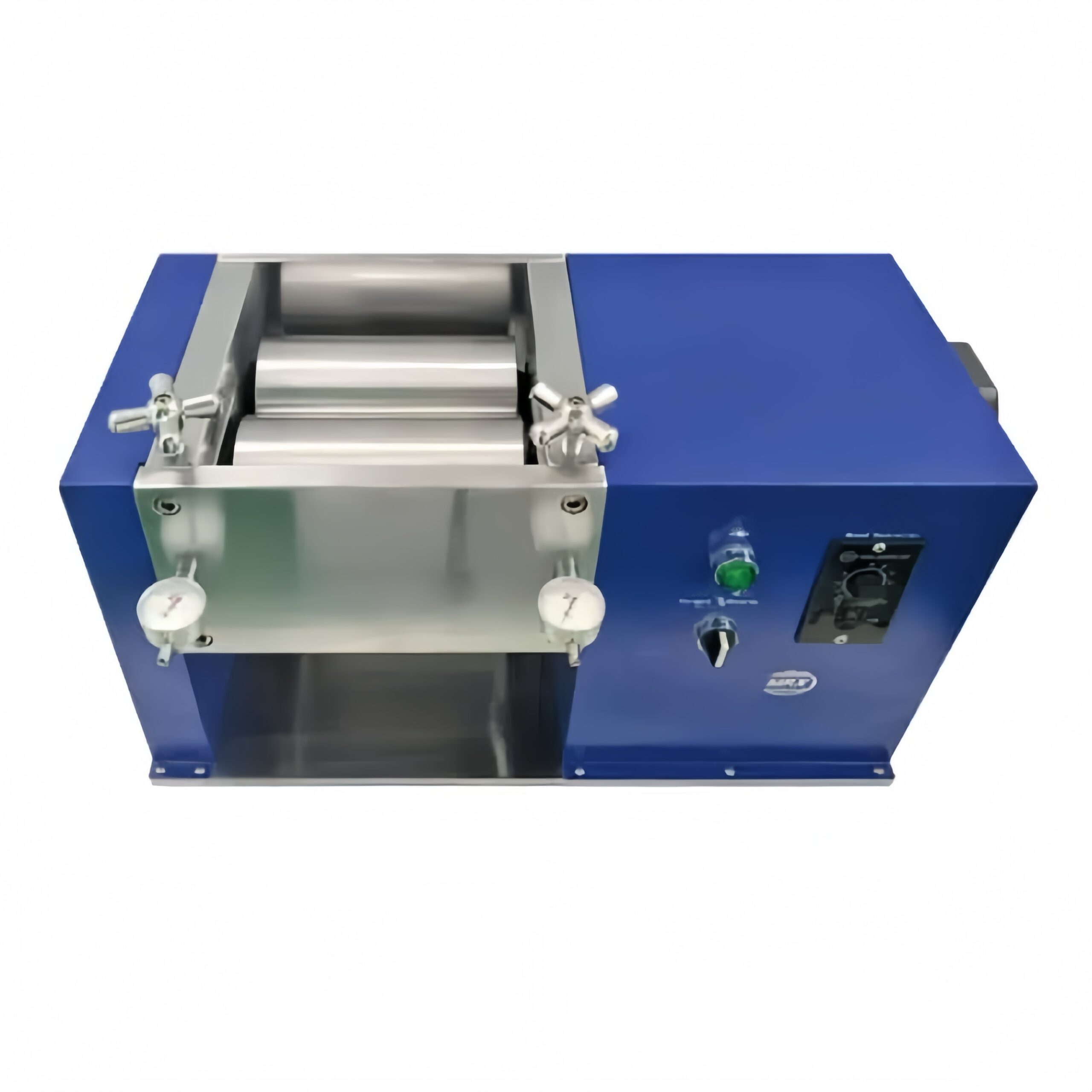

The electrode calendering machine is suitable for thinning electrodes to a desirable thickness and increasing the density of lithium battery electrodes. A small quantity of precious metal materials, such as gold and silver, and non-ferrous materials, such as copper and aluminum, can also be rolled. The rolling thickness is adjustable and easy to use. It is ideal for laboratory R&D and sample production.
- Horizontally-aligned rollers, suitable for small electrode sheets
- Adjustable thickness with rolling speed
- Rolling forward or backward
SPECIFICATIONS
| Model | LT-DG100W | LT-DG200W |
|---|---|---|
| Roller Size | Ø96mm | Ø96mm |
| Roller Cylindricity | ≤±2um | ≤±2um |
| Roller Hardness | above HRC62 | above HRC62 |
| Roller Smoothness | 0.4 or above | 0.4 or above |
| Roller Width | 100 mm | 200 mm |
| Rolling Thickness | 0~2mm, adjustable | 0~2mm, adjustable |
| Roller Placement | Horizontally aligned | Horizontally aligned |
| Rolling Thickness and Speed | Adjustable | Adjustable |
| Voltage | AC220V/50Hz, or AC110V/60Hz | AC220V/50Hz, AC110V/60Hz |
| Power | 200W | 200W |
| Feeding speed | 0～40mm/s | 0~40mm/s |
| Dimension | 500mm*360mm*620mm (L*W*H) | 700mm*360mm*620mm (L*W*H) |
| Net Weight | 70KG | 70KG |
