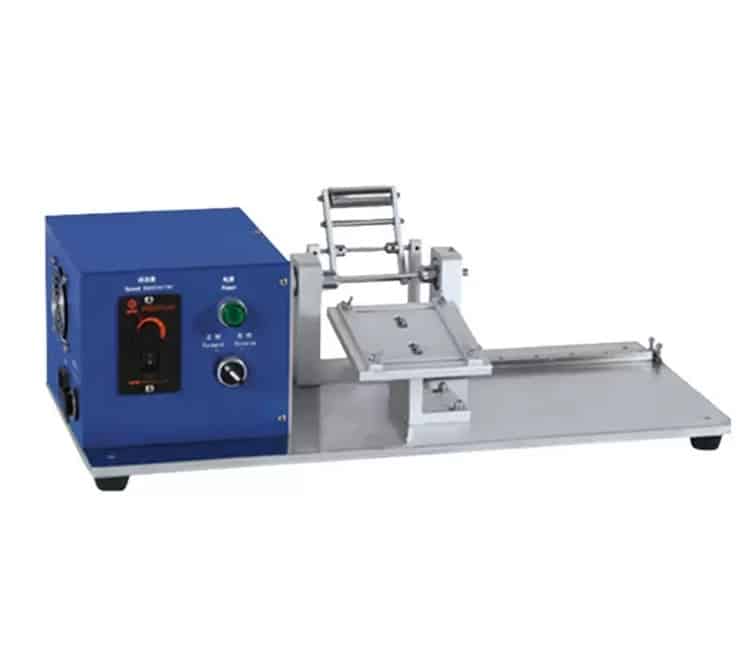

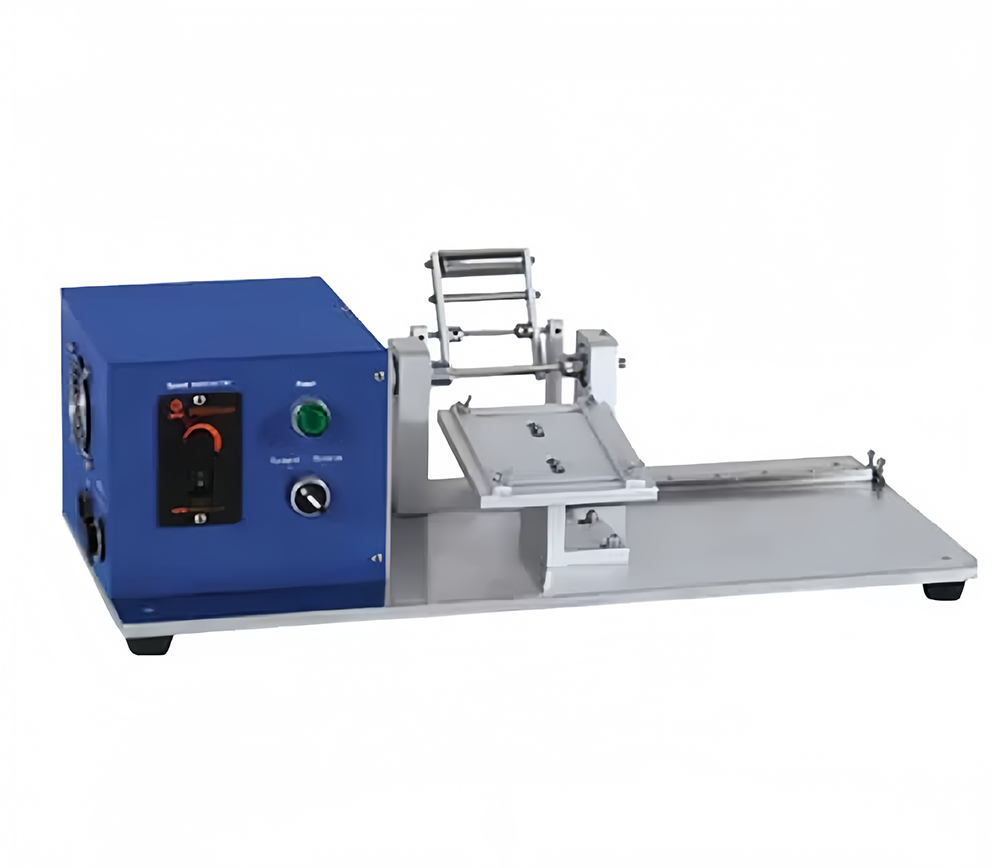

The Manual Battery Winding Machine is a compact, user-friendly system designed for prototyping, small-batch production, or R&D of cylindrical battery cells (e.g., 18650, 21700). It enables precise winding of anode-separator-cathode (jelly roll) assemblies with adjustable tension control, ideal for laboratories or low-volume manufacturing.
FEATURES
- The winding guide plate is adjustable in up/down, left/right, and front/back directions.
- The equipment is equipped with auxiliary idler wheels to ensure proper winding tension.
- The precision motion component features minimal winding needle deflection.
- The rotation speed is adjustable.
- Switchable between clockwise and counterclockwise.
SPECIFICATIONS
| Product Name | Manual Battery Winding Machine |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Power | 25W～40W |
| Rotation Speed | 0~170 rpm, adjustable |
| Applicable Cylindrical Batteries | within Ø30 mm |
| Product Dimension | 360mm*310mm*280mm (L*W*H) |
| Net Weight | 20Kg |
