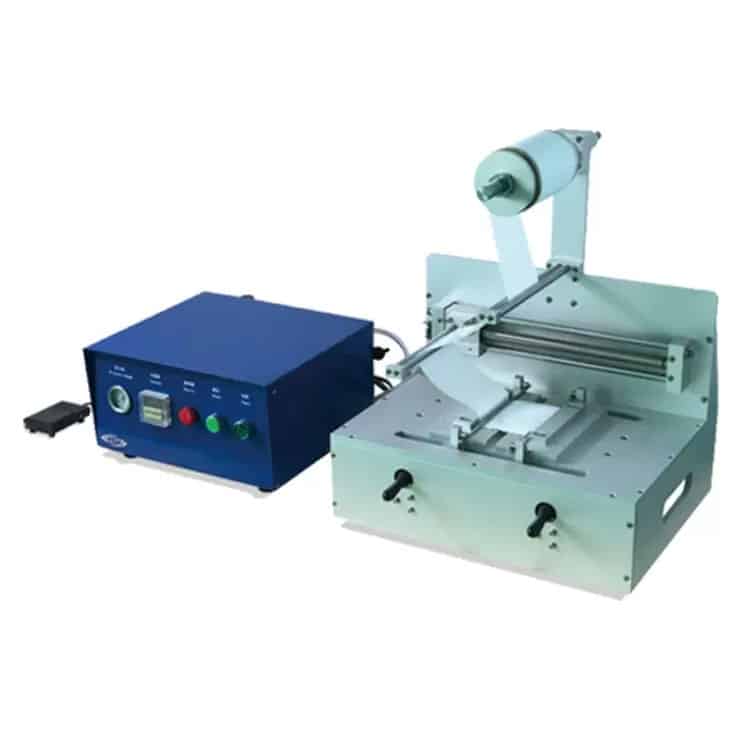

Manual Lithium Battery Stacking Machine for Pouch Cell

Model: LT-BDP200-A
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-BDP200-A Category:
Guaranteed Safe Checkout

The Manual Lithium Battery Stacking Machine for Pouch Cell is a specialized equipment designed for the precise manual assembly of lithium-ion pouch cells. This machine facilitates the accurate layer-by-layer stacking of anodes, cathodes, and separators to create high-quality battery cells with consistent tension and alignment.

SPECIFICATIONS

Stacking ModesZ-type stacking
Separator Roll3-inch roll core, Ø 200mm
Electrode Sheet Specifications Length: (20~200) mm, Width: (20~200) mm, thickness: within 18mm
Oscillation Stroke300mm
Voltage AC220V/50Hz, or AC110V/60Hz
Power200W
Input Air Pressure0.4MPa~0.7MPa
Machine Dimension650mm*400mm*700mm (L*W*H)
Control Box Dimension200mm*300mm*380mm (L*W*H)
Net Weight30Kg

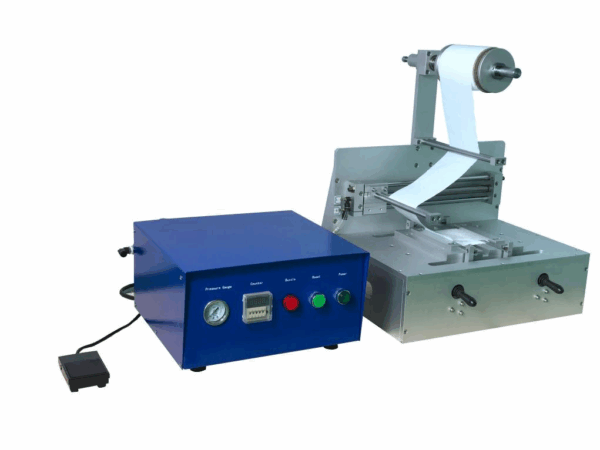

Manual Lithium Battery Stacking Machine for Pouch Cell
Manual Lithium Battery Stacking Machine for Pouch Cell
Weight 30 kg
Power Option

110V 60Hz, 220V 50Hz
