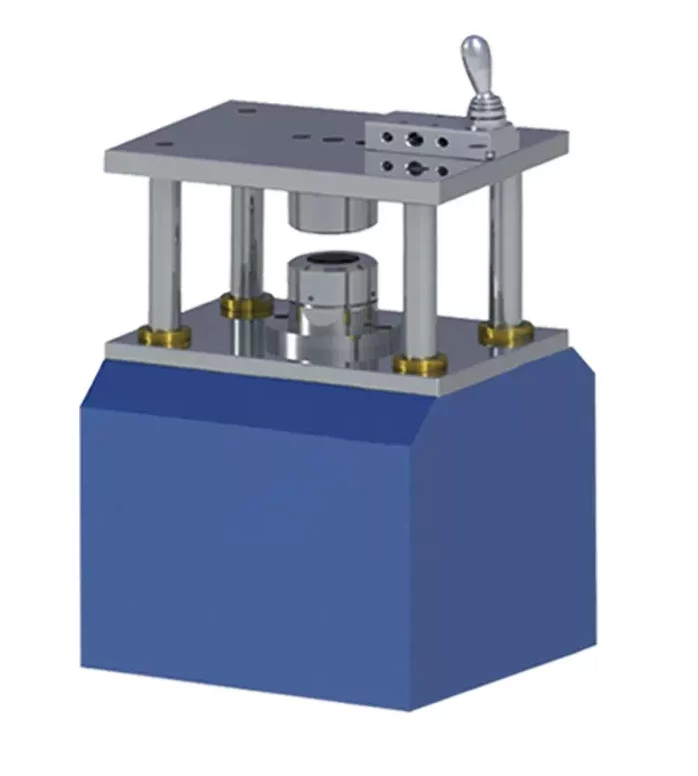

Pneumatic Coin Cell Crimping Machine

Model: LT-QF150
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-QF150 Category:
Guaranteed Safe Checkout

A Pneumatic Coin Cell Crimping Machine is a specialized device used in battery manufacturing to assemble coin/button cells (e.g., Li-ion, Li-MnO₂, or Zn-Ag button batteries). It uses pneumatic (air-powered) pressure to crimp the cell’s metal casing (can and cap) securely, ensuring a hermetic seal to prevent electrolyte leakage and maintain performance.

SPECIFICATIONS

Product NamePneumatic Coin Cell Crimping Machine
Input Gas SourceHydrogen/oxygen gas cylinder or compressed air
(Not recommended to use compressed air inside glove boxes)
Exhaust DesignSpecially designed exhaust port, compatible with external connections such as KF40 adapters
Safety FeaturesEquipped with battery short-circuit protection function
Gas Consumption480ml/stroke
Sealing PressureMax 1MPa (Recommended operating pressure 0.9MPa, accuracy within ±0.5%)
Sealing Stroke30 mm
Sealing DiesStandard CR20 series dies supplied; optional dies for other specifications available upon request
Disassembly DiesOptional dies for CR16, CR20, CR24, CR30 and other models
Product dimensions220mm*220mm*420mm (L*W*H)
Net weight25kg
Weight 30 kg
Power Option

110V 60Hz, 220V 50Hz

Delivery Liftgate Service

I do not need liftgate service., Yes, I need liftgate service.
