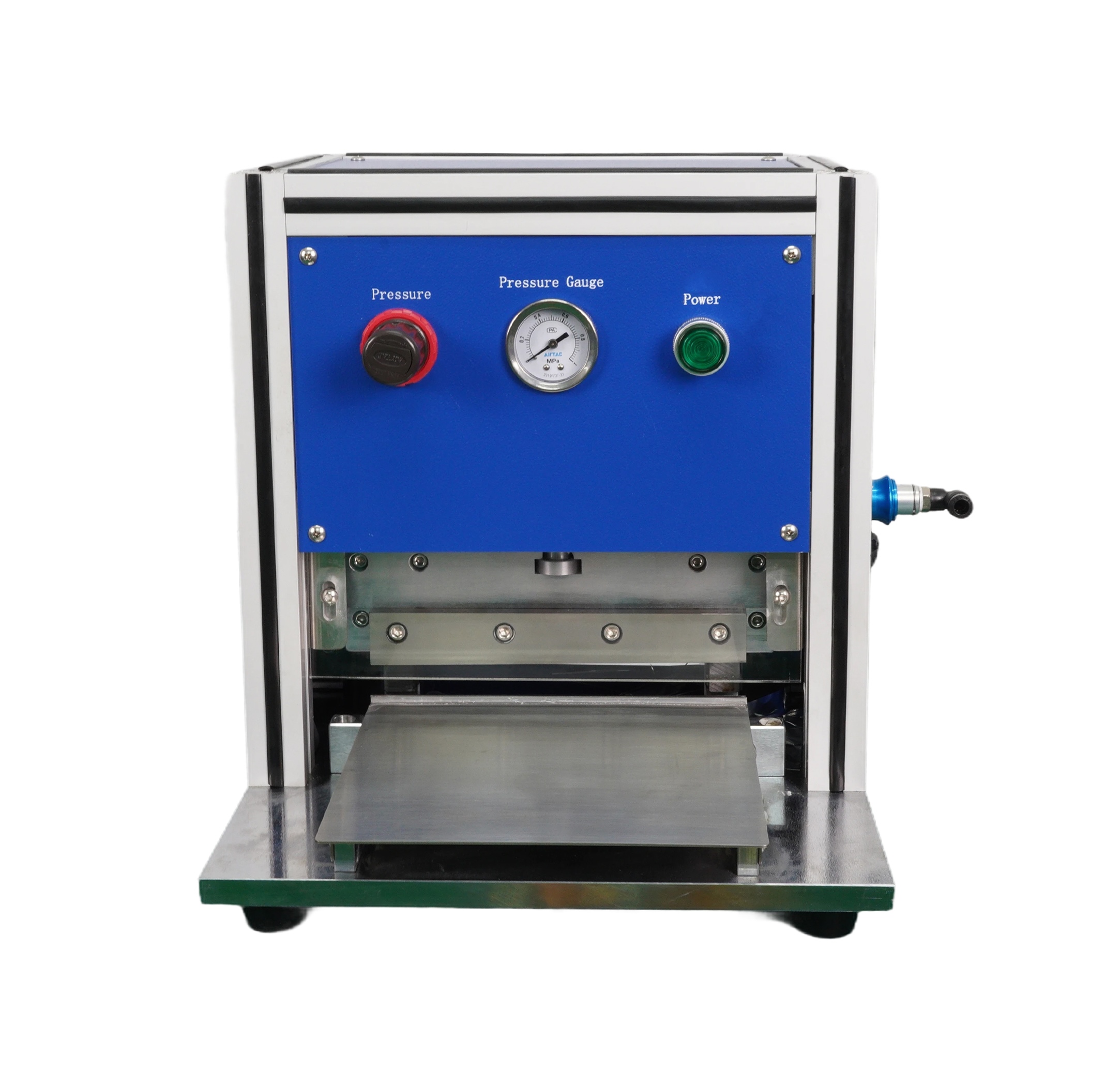

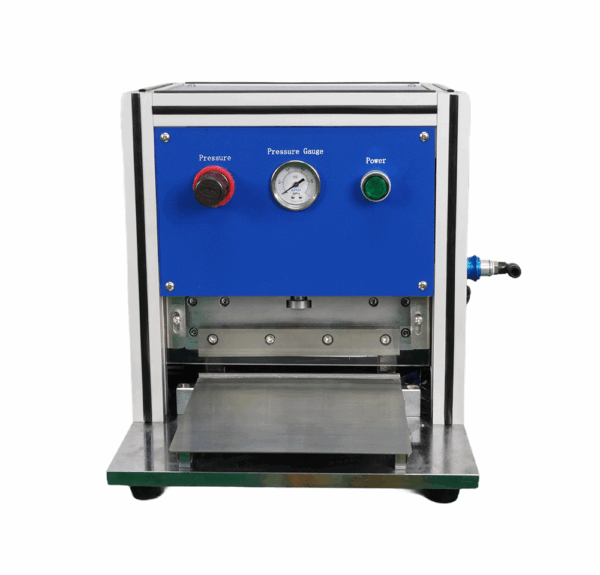

The Pneumatic Edge Trimming Machine is a specialized device designed for trimming the excess aluminum-laminated film (Al-plastic film) around pouch-type lithium-ion battery cells after the heat sealing process. It ensures clean, uniform, and precise edge cuts, improving both the aesthetics and consistency of battery cell packaging. The Pneumatic Edge Trimming Machine is used for the four-sided trimming of formed aluminum-plastic film used in the packaging of flexible-packaged lithium batteries.
Features
- Using a pneumatic cylinder punching method.
- The top cutting blade is guided by a mold ball guiding pole, ensuring extremely high guiding accuracy to guarantee zero gap and service durability between the top and bottom cutting blades.
- The top and bottom cutting blades are made of high-quality steel and feature sharp edges.
- Foot-operated control device.
SPECIFICATIONS
| Product Name | Pneumatic Edge Trimming Machine |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Trimming Width | 2.5 – 8 mm |
| Trimming Length | 200 mm |
| Input Air Pressure | 0.5MPa-0.7Mpa |
| Product Dimension | 320mm*160mm*340mm(L*W*H) |
| Net Weight | 50Kg |
| Working Speed | about 10 seconds per trial |
