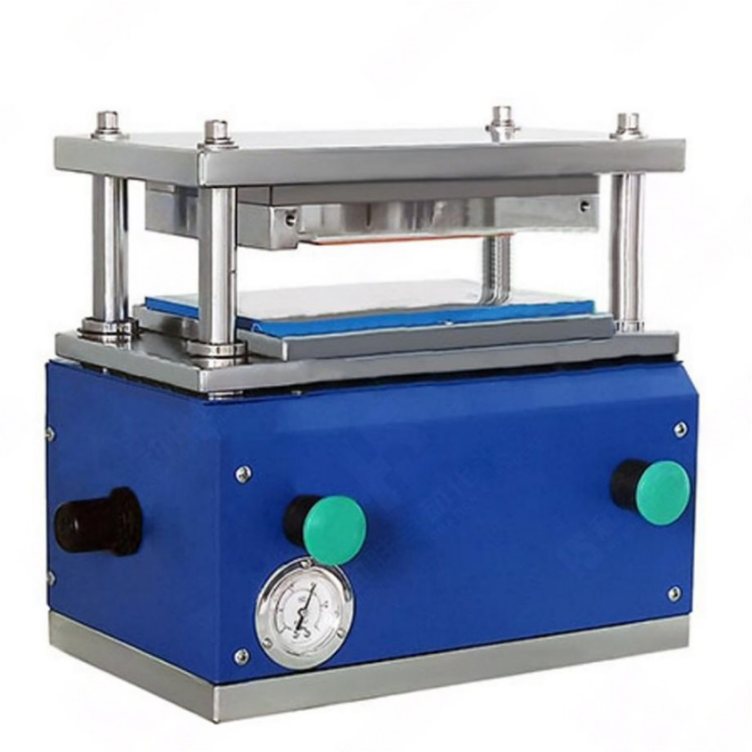

This Pneumatic Pouch Cell Electrode Cutting Machine is designed for precision die cutting of lithium battery cathode and anode electrode sheets. The Pneumatic Pouch Cell Electrode Cutting Machine adopts a pneumatic single-sheet punching method to form electrode sheets accurately and efficiently.
With its compact structure and glove-box-compatible design, the machine can be safely installed and operated inside an inert-atmosphere glove box, making it suitable for battery R&D laboratories and pilot-scale production lines.
Features
• Single-sheet electrode feeding with die-cutting mold, suitable for operation inside a glove box
• Quick-change die mold design, allowing fast and convenient mold replacement
• High-quality cutting results with no burrs, powder shedding, or indentation defects
• Four-guide-pillar structure, ensuring smooth vertical movement and high cutting precision
• Safety light curtain at the material feeding area, providing enhanced operator protection
• Compact and refined appearance, featuring a clean and modern sheet-metal geometric design
• Simple operation, high safety, and small footprint, ideal for laboratory environments
Specification
| Product Name | Pneumatic Pouch Cell Electrode Cutting Machine |
| Vertical Burr | ≤ 12 μm |
| Horizontal Burr | ≤ 20 μm |
| Max. Punching Size | L120 mm * W80 mm |
| Standard Die Molds | Cathode: 56 * 43 mm / Anode: 58 * 45 mm (customizable) |
| Punching Accuracy | ±0.1 mm |
| Punching Force | Max. 1 ton (0.5 MPa compressed air) |
| Recommended Punching Force | 500 kg for battery electrode sheets |
| Die-cutting Stroke | 35 mm |
| Required Air Pressure | 0.5 MPa |
| Product Dimension | 375 * 217 * 317 mm(L*W*H) |
| Net weight | 32 kg |
