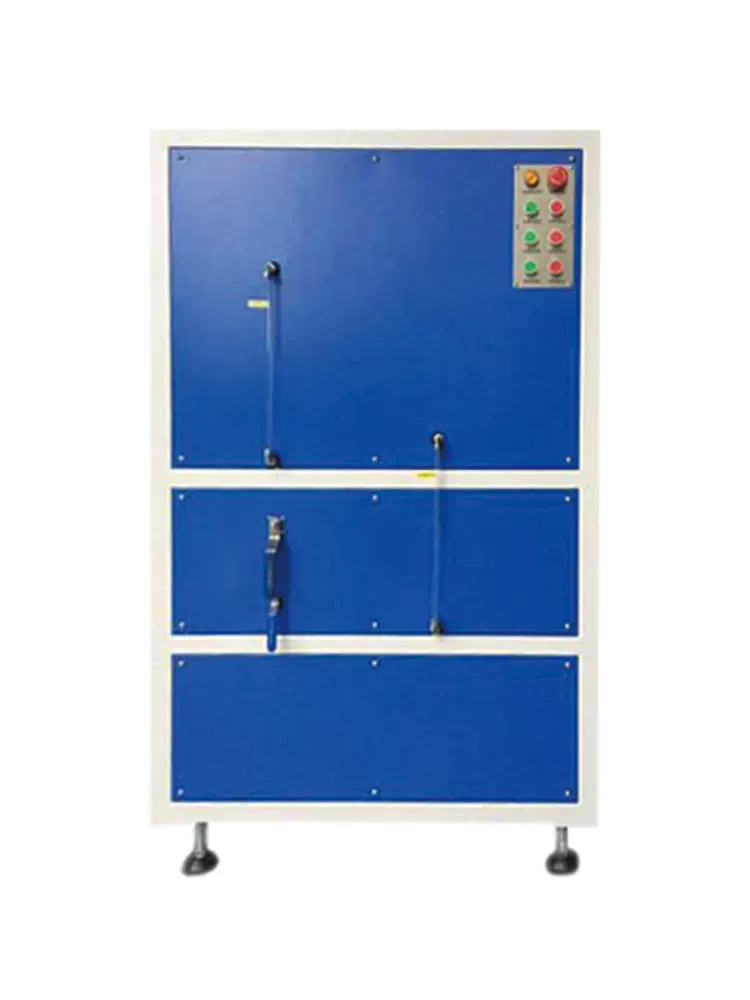

A Solvent Handling System for lithium battery production is a critical subsystem designed to safely manage organic solvents (such as NMP, DMF, acetone, or PVDF binder solutions) used in electrode slurry preparation, coating, and drying processes. These systems ensure safety, environmental compliance, and process efficiency in battery manufacturing.
FEATURES
- The dual-stage water bath treatment unit offers efficient recovery performance for both NMP and particulate matter.
- Featuring a fully-welded stainless steel inner tank for superior corrosion resistance, and a powder-coated exterior for a clean, professional look.
- Utilizing a water bath principle to recover NMP exhaust from the coating process, the system features active self-suction air intake and allows direct use of tap water.
SPECIFICATIONS
| Product Name | Solvent Handling System for Lithium battery |
| Processing Capacity | 600m3/h |
| Input Air Temperature | ≤150 ℃ |
| Recovery Rate | ≥80% |
| Recycling Objects | Water-soluble solvent gas |
| Contact Material | SUS304 stainless steel |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 1.5KW |
| Product Dimension | 1000*860*1750(L*W*H) |
