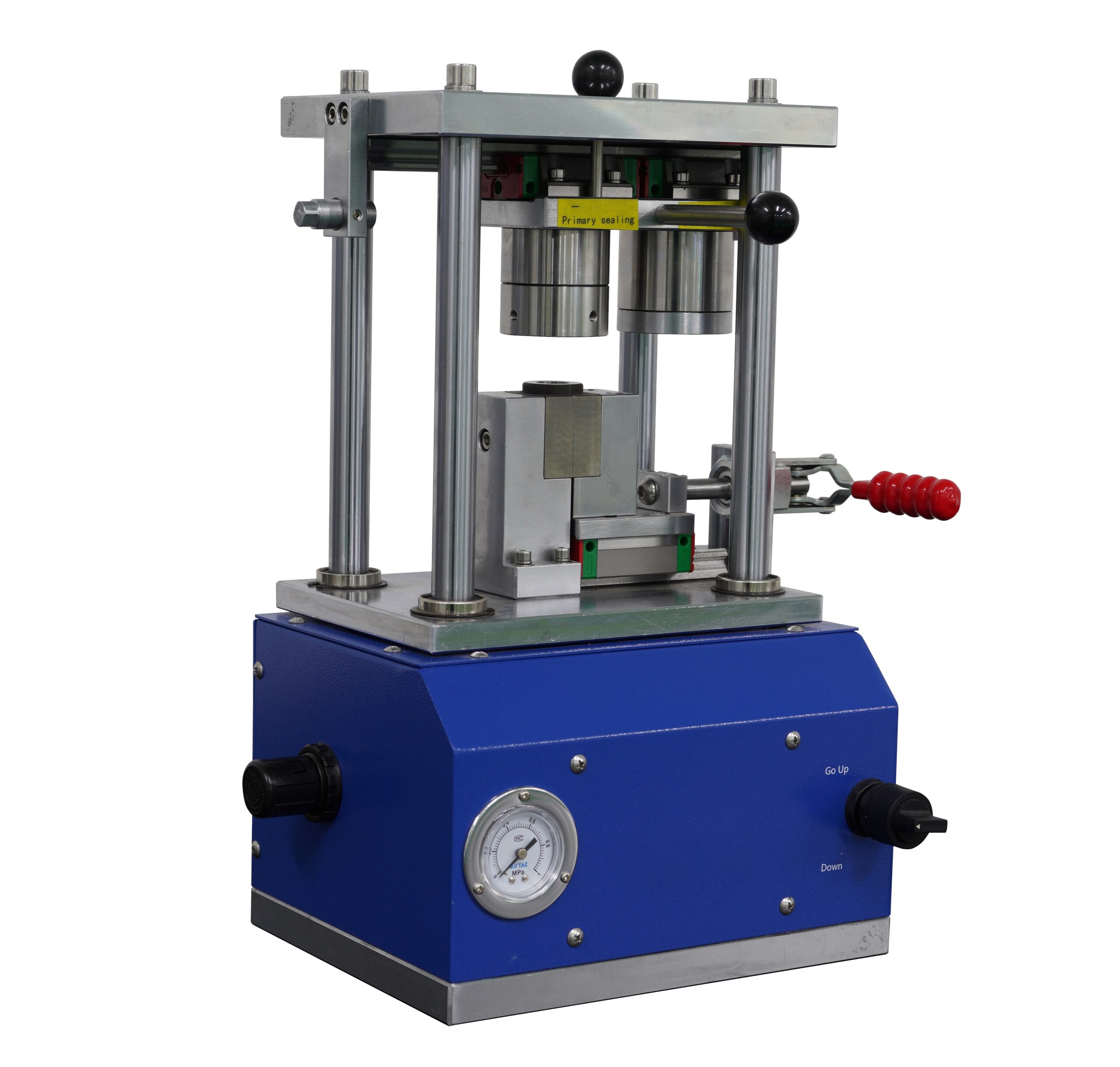

Manual Cylindrical Battery Sealing Machine for 18650/ 21700/ 32650 Cell

$3,450.00

Available on backorder

SKU: LT-CF650 Category:
Guaranteed Safe Checkout

The Manual Cylindrical Battery Sealing Machine is used for crimping of cylindrical cells and cylindrical capacitors in a battery R&D laboratory. With an included die set, it can easily seal 18650 or 21700, or 32650 cells, etc. The compact design allows it to be easily transferred into a glove box through the antechamber and thus prevents exposure of battery materials to moisture. During a normal operation, the pressure gauge reading is between 55 kg/cm² and 80 kg/cm², and the operating force on the hand crank is less than 5.5 kg.

Features

  • Precisely designed die set ensures accurate and reliable sealing.
  • Sturdy steel structure.
  • Hydraulic pressure for effortless operation.
  • Built-in pressure gauge allows precise pressure monitoring and control.
  • Various die sets to seal different cylindrical cells: 18650/21700/32650 etc.
  • Compact size, easy to operate inside a glove box.

Specifications

Product NameManual Cylindrical Battery Sealing Machine
Part MaterialAlloy aluminum and high-strength chrome steel, with surface plating
Product Dimension235mm*180mm*365mm (L*W*H)
Net Weight24kg
Manual Cylindrical Battery Sealing Machine for 18650/ 21700/ 32650 Cell
Manual Cylindrical Battery Sealing Machine
Weight 24 kg
