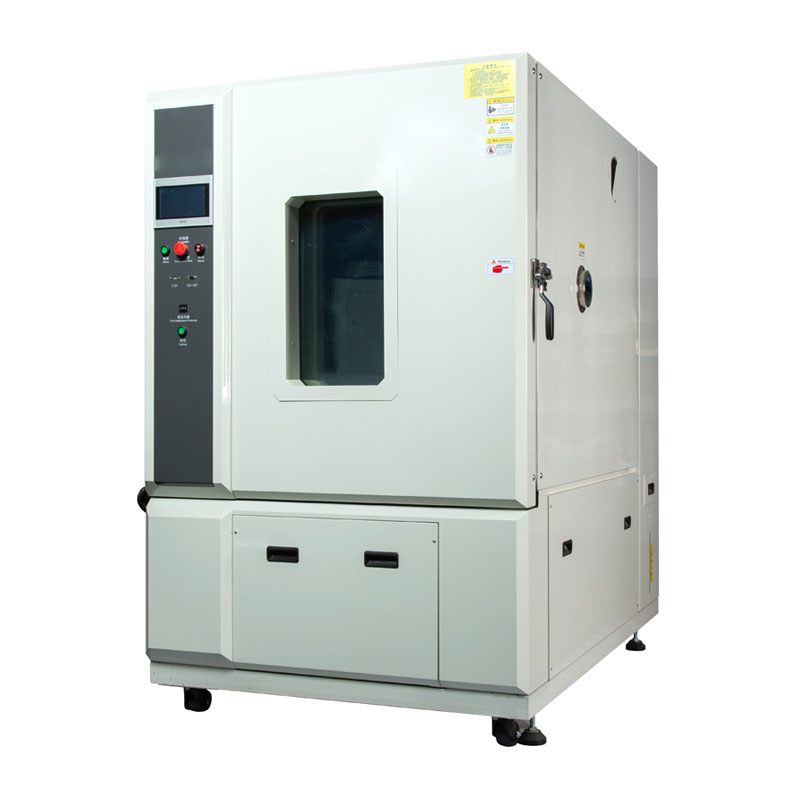

The Programmable Temperature & Humidity Cycling Test Chamber for Battery is designed to maintain user-defined temperature and humidity conditions inside the chamber. These environmental parameters can also be programmed to alternate automatically according to preset test profiles.
The Programmable Temperature & Humidity Cycling Test Chamber for Battery is widely used to evaluate and verify the resistance of electrical, electronic products, battery components, materials, and related products to high temperature, low temperature, dry, and humid environments, ensuring their reliability and performance under extreme and cyclic conditions.
Features
- Robust and Elegant Structure
The outer housing is made of powder-coated SECC steel sheets, precision-formed by CNC machining. The design is clean and modern, equipped with ergonomic, non-reactive door handles for easy operation. - Large Touchscreen Interface
Features a large LCD touchscreen that is more intuitive and user-friendly than conventional displays. The control system offers stable operation with improved energy efficiency. - High-Precision Control System
Equipped with a microcomputer-based temperature and humidity controller, delivering accurate, reliable, and repeatable environmental control. - Wide Observation Window with Illumination
A large viewing window with built-in lighting ensures excellent visibility inside the chamber. The window uses triple-layer vacuum-tempered glass, enabling continuous, clear observation of test samples during operation. - Independent Over-Temperature Protection
An independent temperature-limit alarm system automatically shuts down the unit if the temperature exceeds the preset safety threshold, ensuring safe, uninterrupted testing. - Cable Access Ports
The chamber is equipped with test access ports on both left and right sides (Ø50 mm or Ø100 mm optional), allowing external power cables or signal lines to pass through during testing. - Mobility and Stability
The unit is fitted with high-quality lockable PU casters at the base, enabling easy movement and secure positioning. - Energy-Saving Design
Compared with traditional models, the new programmable temperature and humidity test chamber can reduce power consumption by up to 45%, shorten response time by 50%, and reduce water consumption by 80%. - Explosion-Relief Safety Options
Explosion-relief pressure vents and anti-blast safety chains can be customized to enhance operational safety in high-risk testing scenarios. - Optional Safety & Monitoring Functions
Exhaust system, fire suppression, and salt fog alarm functions are available as optional configurations based on testing requirements.

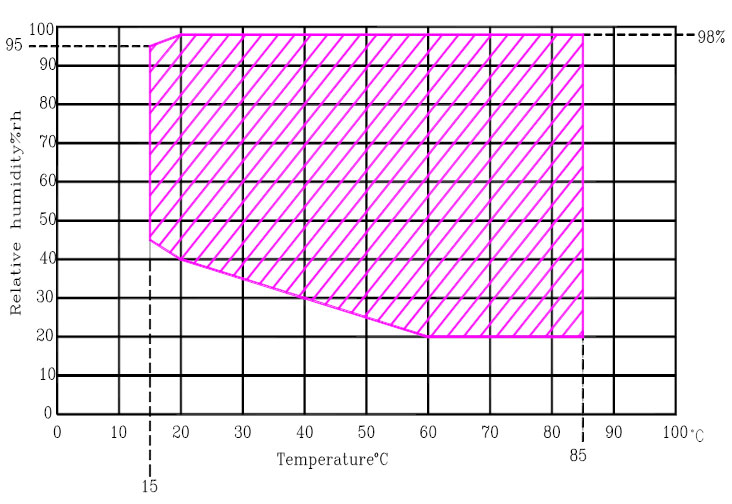

Temperature Control Range
Specifications
| Product Name | Programmable Temperature & Humidity Cycling Test Chamber for Battery |
| Internal Chamber Dimensions (W × H × D) | 500 × 600 × 500 mm |
| Overall Dimensions (W × H × D) | 700 × 1760 × 1600 mm (subject to final design) |
| Temperature Range | −40°C to +150°C (programmable) |
| Temperature Fluctuation | ±0.5°C |
| Temperature Deviation | ±2.0°C |
| Heating Rate | −40°C to +85°C, average 5°C/min (non-linear, no-load) |
| Cooling Rate | +85°C to −40°C, average 5°C/min (non-linear, no-load) |
| Humidity Range | 20% to 98% RH |
| Humidity Fluctuation | ±2.5% RH |
| Humidity Deviation | 75% RH: +2% / −3% RH <75% RH: ±5% RH |
