Semi-Automatic Electrode Stacking Machine​ for Punch Cell Preparation

Model: LT-BDP200-C
Power Input: AC220V/50Hz, or AC110V/60Hz
Request a Quote: landt@landtinst.com

SKU: LT-BDP200-C Category:
Guaranteed Safe Checkout

A semi-automatic electrode stacking machine for punch cell (prismatic/pouch cell) preparation is designed to accurately layer anode, separator, and cathode sheets in a stacked (Z-fold) configuration. These machines improve efficiency and precision compared to manual stacking while remaining cost-effective for small to medium-scale production.

Features

  • The number of stacked layers can be automatically controlled according to preset settings.
  • Adopting a compatible design, the changes of battery size can be achieved by adjusting the positioning fixtures, with a wide adjustment range.
  • A PLC control panel and HMI operation for convenient use and maintenance.
  • Manual loading of electrode sheets and automatic positioning to ensure high stacking accuracy.

Specifications

Product NameSemi-Automatic Electrode Stacking Machine
Aligning Accuracy ±0.5 mm for stacked electrodes
Stacking Electrode SizeMin. L62 mm * W46 mm
Max. L200mm*W150mm
Stacking ThicknessMax. 30mm
Number of Stacking LayersMax. 500 (adjustable)
Separator Roll SizeMax. 250mm
Separator Roll Core3 inch
Product Dimension1200*800*900mm(L*W*H)
Net WeightAbout 500 Kg
VoltageAC220V/50Hz, or AC110V/60Hz
Input Air Pressure0.5 ~ 0.8 MPa

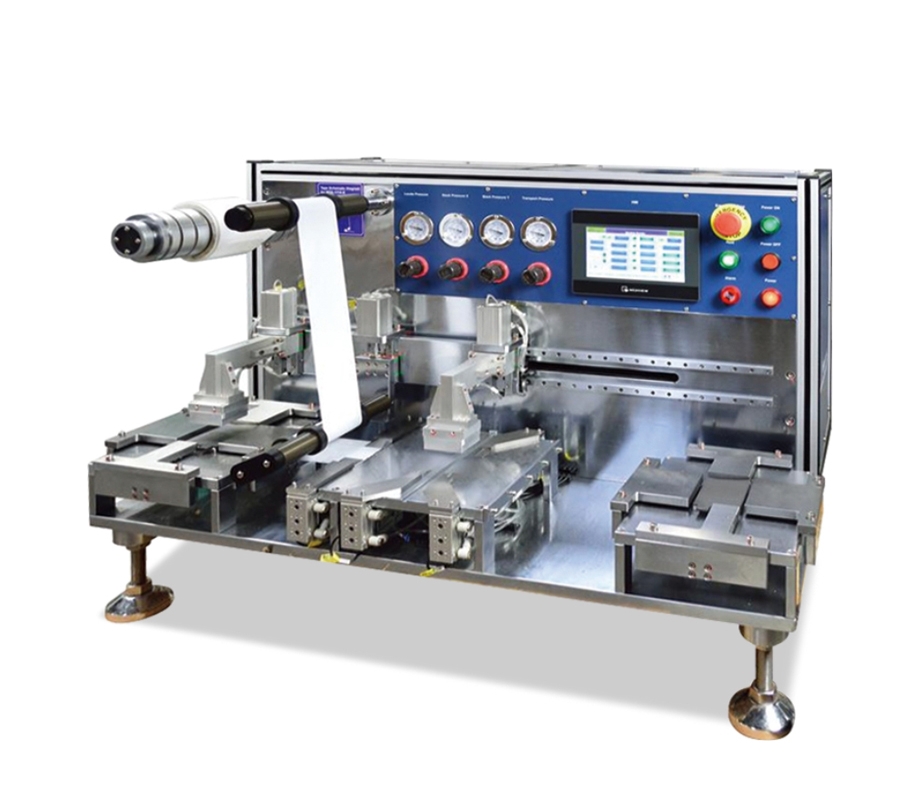

Semi-Automatic Electrode Stacking Machine
Semi-Automatic Electrode Stacking Machine
Weight 500 kg
Power Option

110V 60Hz, 220V 50Hz

Delivery Liftgate Service

I do not need liftgate service., Yes, I need liftgate service.
