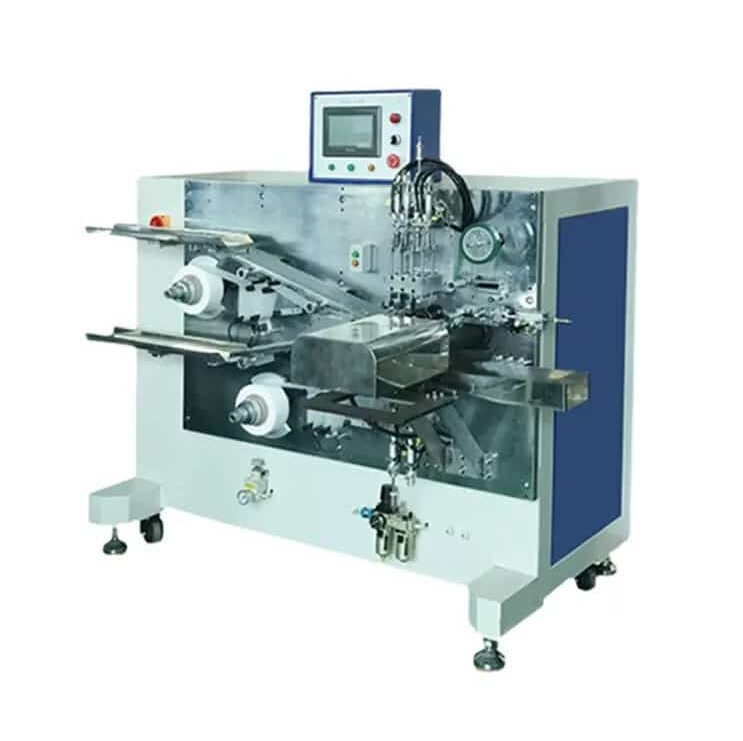

The Semi-Automatic Electrode Winding Machine combines operator-assisted loading with automated winding control, ensuring consistent electrode alignment and tension for high-quality cell assembly. It is ideal for R&D, pilot lines, and small-to-medium-scale production.
FEATURES
- PLC touchscreen control and foot pedal operation
- Manual loading of electrode sheets, automatic winding, and automatic unloading of electrode sheets.
- The diameter of the rollers could be replaced.
- The electrode sheet is without the sign of damage, core shift, or electrode misalignment.
- Features the capability of recording productivity.
- Settable separator tension control and high winding alignment accuracy.
SPECIFICATIONS
| Product Name | Semi-Automatic Electrode Winding Machine |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Rated Power | 1.0 KW |
| Winding Round Needle Size | 3.5 mm OD |
| Electrode Winding Size | 17-32 mm OD, 25-70 mm in length |
| Winding Accuracy | ≤ 0.5 mm |
| Winding Speed | Max 300r/min |
| Diameter of Separator Roll | Max 250 mm |
| Input Air Pressure | 05~0.7 Mpa |
| Guiding Roller Length | 1200 mm |
| Product Dimension | 1660mm*1300mm*1570mm (L*W*H) |
| Net Weight | 800 KG |
