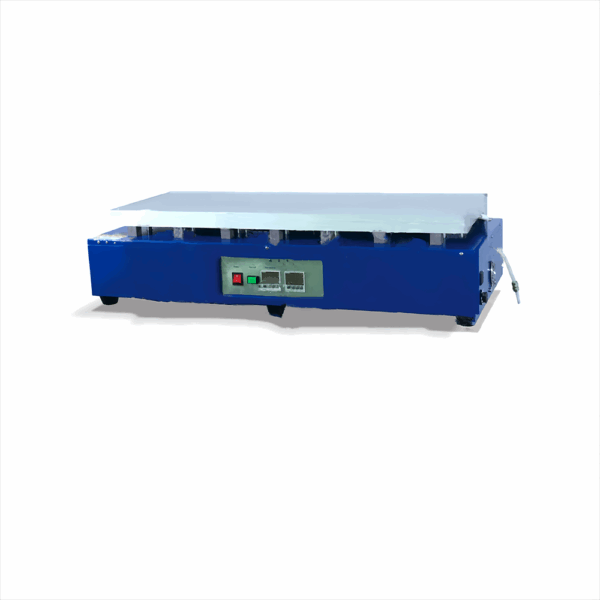

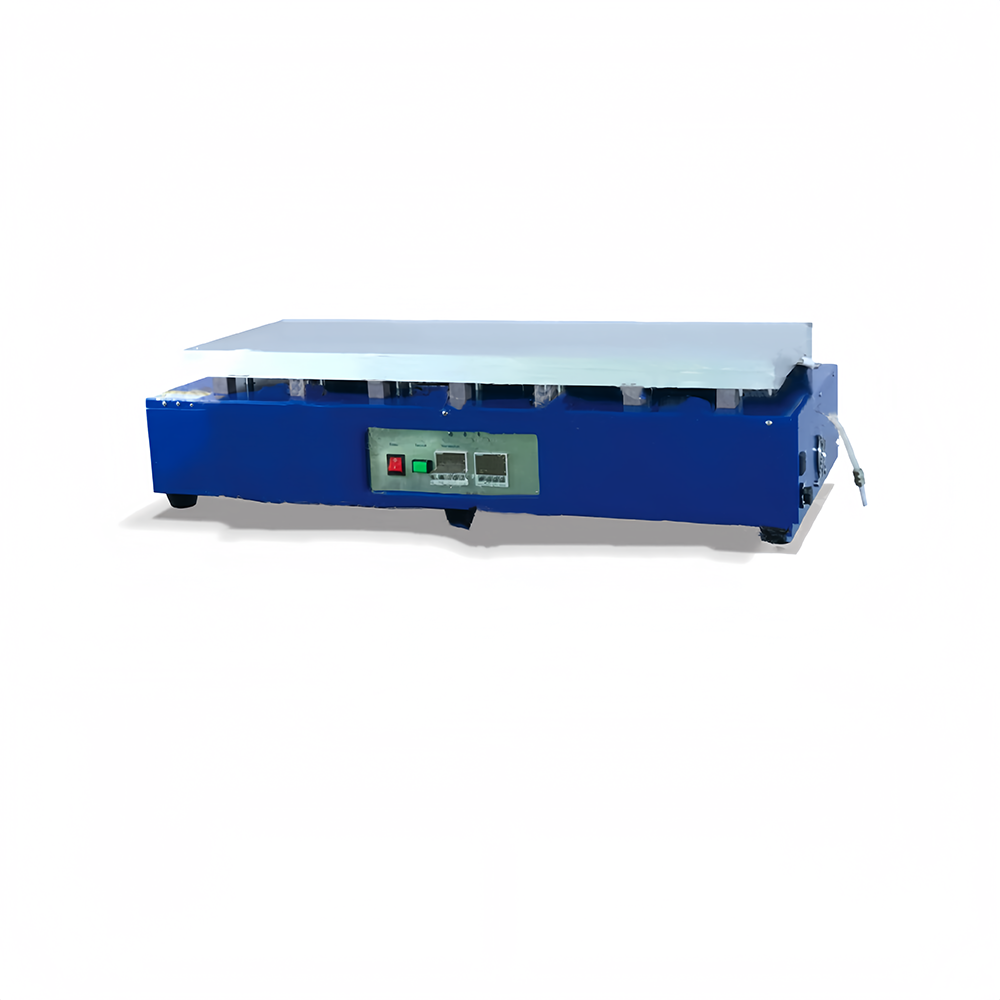

A coating machine with a heated plate is designed to apply a uniform electrode slurry (anode or cathode) onto metal foils (Cu/Al) while controlling the drying degree through precision thermal management. This integrated heating system improves coating quality, reduces defects, and enhances production efficiency.
Features
- Adopt a bottom heating and drying system.
- Coating speed is adjustable within the range of 0 to 100 mm/s.
- Drying system with digital temperature display control.
- Stroke adjustable between 10 to 250 mm via limit switches; vacuum aluminum disc allows for quick placement or removal of substrates.
- Equipped with an adjustable coater.
Specifications
| Product Name | Coating Machine with a Heated Plate |
| Maximum Stroke | 250mm |
| Vacuum Plate Material | aluminum flat plate |
| Vacuum Plate Size | 365mm*200mm*30mm (L*W*H) |
| Coating Thickness | 0.01 ~ 3.5 mm |
| Coating Speed | 0 ~ 100 mm/s |
| Voltage | AC220V/50Hz, or AC110V/60Hz |
| Net Weight | 50 KG |
| Product Dimensions | 500mm*310mm*260mm (L*W*H) |
