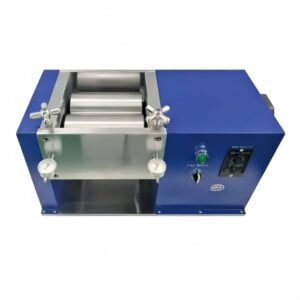

The manual rolling press machine is used to press battery electrode materials, a few precious metal materials, and nonferrous materials like copper and aluminum. It is simple to use and allows for adjustment of the rolling thickness. This machine adopts a gear transmission to achieve roll pressing. The rolling thickness is adjustable between 0~2mm.
SPECIFICATIONS
| Model | LT-SG100W | LT-SG200W |
|---|---|---|
| Roller size | 96mm (Dia.) * 100mm (W) | 96mm (Dia.) * 200mm (W) |
| Roller cylindricity | ≤±2um | ≤±2um |
| Roller hardness | HRC62 | HRC62 |
| Roller smoothness | 0.4 or above | 0.4 or above |
| Rolling thickness | 0~2mm, adjustable | 0~2mm, adjustable |
| Roller placement | Horizontal placed | Horizontal placed |
| Operation mode | Manual | Manual |
| Feeding speed | 0~40mm/s (Depends on the hand crank operating speed) | 0~40mm/s (Depends on the hand crank operating speed) |
| External dimensions | 405mm*305mm*355mm(L*W*H) | 405mm*305mm*355mm (L*W*H) |
| Weight | 50KG | 60KG |
